Socage S.R.L. products

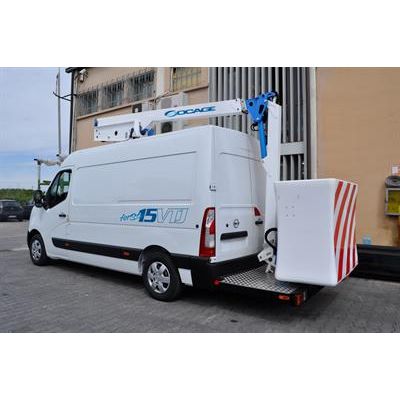

This aerial working platform has a working height of 14,5 m and an outreach of 9,50 m. The forSTe 15VTJ is an ideal equipment for those who need space to work at height with tools. Typical users might indeed be electricians and operators of electric plants or power lines.

SPJ315 is a tracked aerial platform able of a maximum working height of 15 m and a maximum working outreach of 7 m. The Safe Working Load is 225 kg (2 operators + tools) without restrictions throughout the working area, resulting in high performance if compared with the reduced overall dimensions, only 78 cm width during translation (with basket removed).

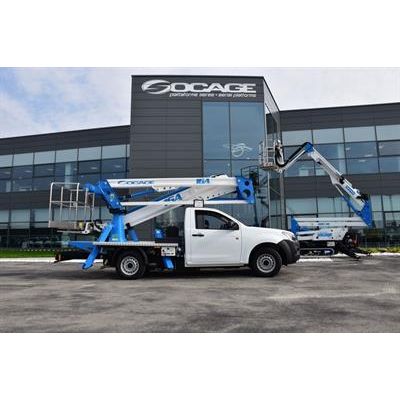

16AE mounted on pick-up is an articulated aerial platform developed for off-road interventions where a standard platform would not be able to access. It is a working aerial platform with 16m working hight and it has got a safe working load (SWL) of 250 kg (2 operators + tools). 16AE on pick-up is able to 90°+90° basket rotation to improve the outreach to 8.00 m. The ground controls with four individual levers allow the operator to deploy the outriggers and stabilize the platform even in the most difficult environment. 16AE is the first aerial platform with 16 m working hight, articulated and mounted on pick-up.

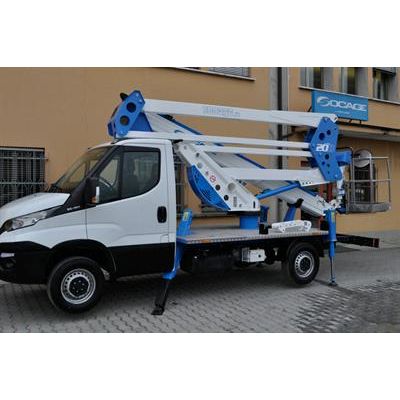

ForSte 20D is a double articulated platform of the E Series, 20 m tall and with a maximum working outreach of 9 m. Thanks to the SPP profiles and a chassis with stabilizers H+H, this new platform wins Socage’s challenge on lightness, it has a load of the standard basket of 230 kg (*optional: 300 kg) and it is mounted on a 3,5 ton truck, with electric controls. The rotation of the aerial part is 700° and the rotation of the aluminum basket (sized 1400x700xh 1100 mm) is 90° + 90°.
