Spaans Babcock products

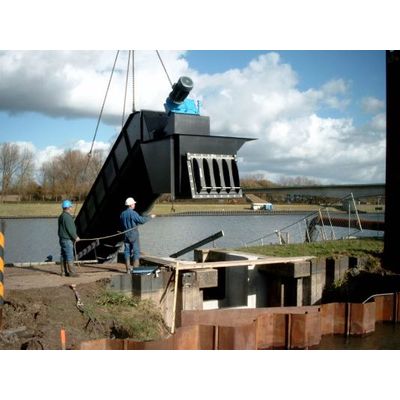

The (Archimedean) Screw Pumps are well-known for their excellent qualities such as the Simple & Rugged design, the high efficiency, the capacity to pump raw water(even when it contains an amount of solids and debris) and their lifetime reliability. Spaans Babcock has a worldwide reputation of being the oldest and the largest manufacturer of Archimedean Screw Pumps with a track-record of more than 30,000 screw pumps installed. Screw Pumps can be used for capacities from 15 litres/sec up to max 11 m3/sec and come in 3 basic forms: built in the traditional concrete trough, with steel trough liner and the prefabricated, ‘ready to install’ compact units. To learn more about the qualities and advantages of screw pumps please select from the menu on the left or simply contact us!

The Spaans Babcock Screw Turbine is probably the most efficient technology for low head hydropower sites. Unique is the fish friendliness, long lifetime and minimal operating costs. Spaans Babcock offers grid connected, off-grid and hybrid systems. The Screw Turbine is a further development of the Screw Pump. Whereas the Screw Pump pumps the water up, in the Screw Turbine the water flows down. The Turbine rotates due to the flow of the water and energy is transferred to the drive unit. The generated energy is transformed by a generator into electricity. A single Screw Turbine can produce up to around 500 kW and a number of Screw Turbines can be placed parallel or in series. Project sizes typically vary between 50 and 2000 kW. Spaans Babcock can offer the full solution, including gates, screens, remote monitoring and control and after-sales and spares supply.
