Special Power Sources products

Provides 500 watts of power; One of the most popular ratings; Adequately services a wide variety of power needs; Available with CSA certification.

Provides 1000 watts and 1500 watts respectively; Feed multiple loads using one power generator to reduce operating costs; The RP1000 can be modified in the field to achieve a 1500 watt rating by switching out the Fuel Cell Bundle; Available with CSA certification.

The Field Stand is designed to elevate the power generator 25 inches (64cm) off the ground. This prevents the unit from resting in puddles, snow or mud. It allows air flow around the unit and physical access at waist level. The stand is painted steel and ships unassembled. For the 500 watt unit order p/n ARP500-FS. For the 1000 watt and 1500 watt unit order p/n ARP1500-FS.

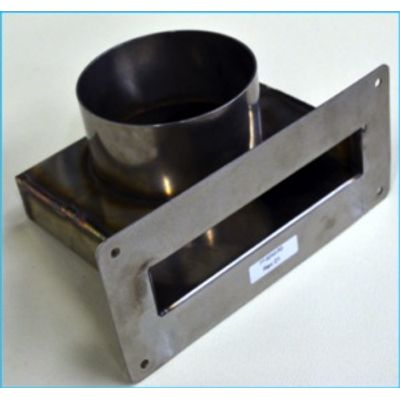

The exhaust vent is located on the lower right hand corner of the power generator. When deployed outside, the unit’s exhaust is typically discharged directly from the enclosure into the atmosphere. In certain installations (inside an equipment shelter or wherever excessive snow could build up and block the exhaust vent) the exhaust may have to be directly ducted to a specific area. This adapter attaches to the enclosure and provides a standard 4” round connection on which a standard 4” duct can be attached (duct is provided by user). For the ARP Series 500 watt model order p/n ARP500-EXH. For the ARP Series 1000 watt and 1500 watt model order p/n ARP1500-EXH. For RP Series contact Special Power Sources.

This kit is externally mounted to the power generator. It includes a pressure regulator that can take a maximum of 125 psi and reduce it to the specified inlet pressure of 2 to 5 psi. Pressures over 125 psi must by depressurized before feeding the pressure regulator. Also included in this kit is a coalescing canister and filter that will capture any liquids in the incoming gas which could cause damage to the unit. For Propane fuel order p/n ARP-HWP or RP-HWP, for Natural Gas fuel order p/n ARP-HWN or RP-HWN.
