Stäubli Electrical Connectors AG products

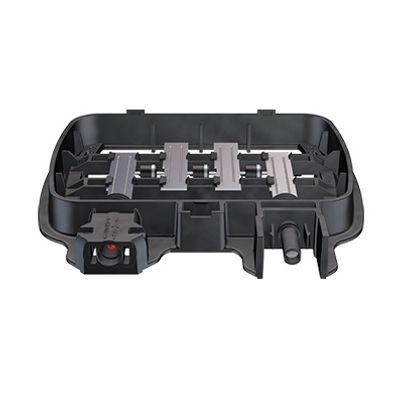

Junction box for electrical connection of horizontal ribbon conductors on crystalline modules. The low profile construction of the box allows it to be installed directly under the module frame. Ribbon termination is achieved by welding, soldering, or, optionally, by terminal clips.

Junction box for electrical connection of vertical ribbon conductors on crystalline modules.

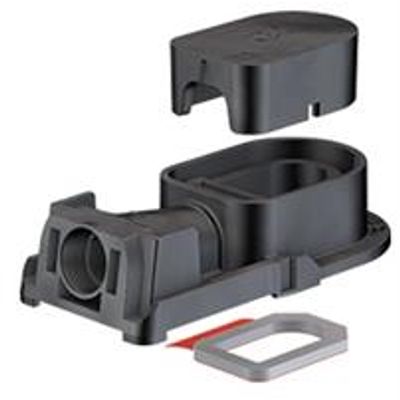

Our new open format junction box with integrated MC4 connector allows for countless possible configurations to suit a wide range of applications.

The connection of the TwinBox is achieved by using the MC4 connector system. Depending on the choice of cables and connectors various voltage systems may be realized:  IEC 1000 V – 1500 V as well as UL 600 V – 1000 V.
