Subtech GmbH products

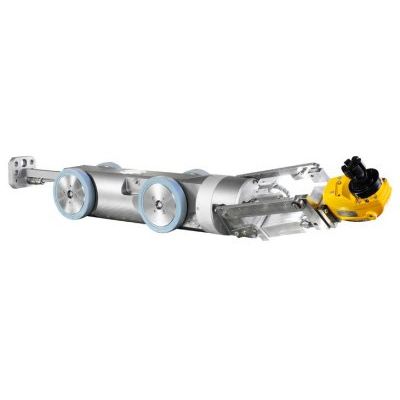

Delivering 1.3 kW (1¾ hp) at 12,000 rpm, the air-powered Titan 150 cuts most any pipe or liner material rapidly, cleanly and precisely. Lightweight hose design allows the cutter to travel as far as 120 m. With two-axis articulation, the cutter arm reaches up 220 mm / 9` (400 mm /16` with additional equipment), sweeps 400 degrees, and also performs horizontal front cutting. Variable-speed arm articulation and creeping ensure maximum cutting precision. An integral water-flushed pan/tilt color camera delivers real-time footage. The Titan 150 accepts diamond-impregnated, hardened-steel cutting bits, which deliver long-lasting performance thanks to onboard water cooling. Hundreds of bit styles are available, with the more popular options shown here.

Delivering 4.5 kW / 6.5 hp at 7200 rpm, the air-powered Titan 250 cuts any pipe or liner material rapidly, cleanly and precisely. Lightweight hose design allows the cutter to travel as far as 120 m / 400`. With two-axis articulation, the cutter arm reaches up 250 mm / 10` and sweeps 400 degrees. Optional accessories install in under five minutes to extend reach to 600 mm / 24`. Variable-speed arm articulation and creeping ensures maximum cutting precision. An integral pan/tilt water-flushed camera delivers real-time cutting footage. The extension add-on has an additional pan/tilt camera, which is also water flushed. The Titan 250 accepts diamond-impregnated or hardened-steel cutting bits, each delivering long operating life thanks to onboard water-cooling.
