SUNEX S.A. products

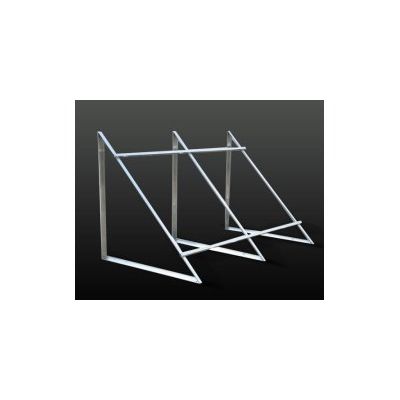

We offer a wide range of products to mount solar collectors as well as the photovoltaic panels. Our offer includes complete montage sets as well as separate elements like: hooks , beams, joint elements, aluminum profiles and so on. Wide range of SUNEX`s production powers enable us to offer many different elements for the customer’s request. All components of the mounting systems are designed according to restrictive endurance requirements. They are suitable to fulfill those tasks also in the regions in the Europe where the wind and snow load is most high.

Innovative solution for people who may not have a traditional fireplace in the apartment for various reasons. Bio-fireplaces are devices that do not require connection to a chimney. Installation and operation of this device is not complicated.

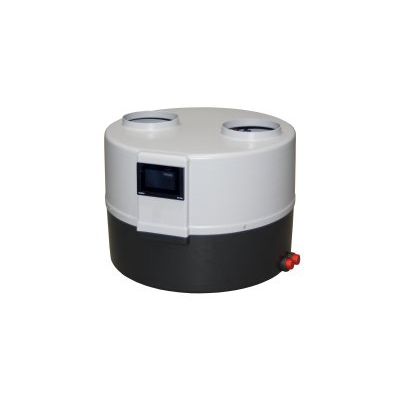

The heat pump series DROPS M4.1 is a high-efficient compact device designed for hot water preparation. Thanks to its design it can be connected to virtually any type of new or existing water tank.

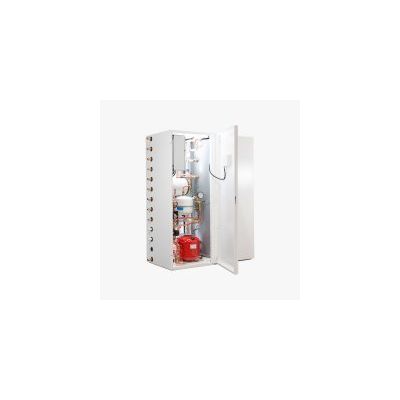

The internal installation is made out of copper pipes. Connections are made in Mapress technology. The water heating installation and the water and solar systems are protected by safety valves and an expansion vessel. In addition, at the outlet of the hot water is a thermostatic mixing valve which protects the users against too hot water and keeps the temperature of the water at a certain level. All devices, i.e. circulation pumps, mixing valves, sensors are connected to the control cabinet.

Solar installations using the SX collectors convert solar energy into useful heat. The heat produced in the  solar collectors  is transferred trough the working medium to the water or industrial tank, where it is accumulated .The effective operation of the system is controlled by a differential temperature controller in cooperation with a circulating pump.

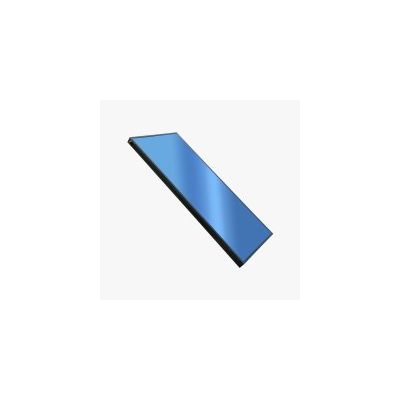

Install Options: vertical or horizontal.Casing: Bended, powder-coated, aluminum frame Bottom: Aluminum plate connected to frame with help of a glue and screws.Type of pane: Solar hardened glass with low iron oxide content and prism structure. Connected to frame with help of a glue and mask board.Absorber form: single or double harp Absorber type: Copper, coated with high selective titanium and quartz layer.Available sizes (gross): 2,0; 2,38; 2,51; 2,85 m2,Collector height: 89mm.Available certificates: Solar Keymark, “B” sign, IBMER accordance certificate.Testing units: Österreichisches Forschungs- und Prüfzentrum Arsenal Ges.m.b.H.; Instytut Paliw i Energii odnawialnej w Warszawie.

Collector efficiency: 83,6%.Install Options: vertical or horizontal.Casing: stainless steel.Supporting structure: aluminum.Pipe glass: hardened glass 1,8mm thick coated anti-reflexive layer.Absorber type: Copper, coated with high selective titanium and quartz layer.Available sizes (gross): 1,7; 2,19 m2.Totally area: 1,7; 2,19 m2.Absorber area: 0,83; 1,12 m2.Available certificates: “B” sign, IBMER accordance certificate.Testing units: Instytut Paliw i Energii odnawialnej w Warszawie

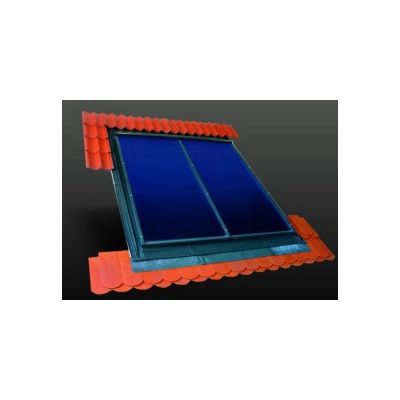

Module collectors are designed to be fitted inside the roof. Wooden, waterproof casing, combined with the aluminum cover, guarantee full integration with the roof. The collectors are available in sizes: 1,0 and 2,0 m2 what gives a possibility to cover the whole roof surface.

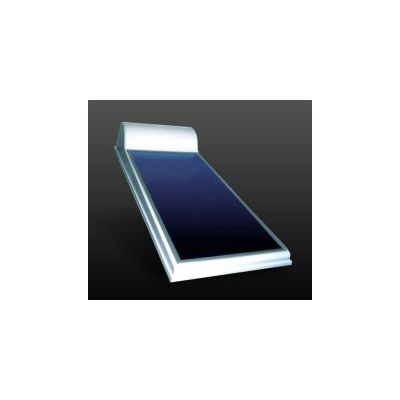

Thermosyphon is a complete device for preparing of hot utility water. The device contains high quality collector, water deposit tank and all necessary equipment. In order to use the Thermosyphon You need only to mount it on a roof and connect him to existing installation line.

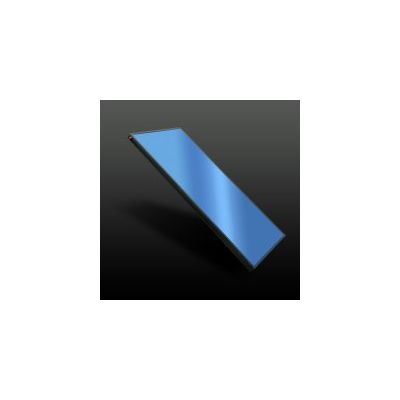

Install Options: vertical or horizontal. Casing: Bended, powder-coated, aluminum frame. Bottom: Aluminum plate connected to frame with help of a glue and screws. Type of pane: Solar hardened glass with low iron oxide content and prism structure. Connected to frame with help of a glue and mask board. Absorber form: single or double harp. Absorber type: Copper, coated with high selective titanium and quartz layer. Available sizes (gross): 2,0; 2,51; 2,85 m2. Collector height: 100mm. Available certificates: Solar Keymark, “B” sign, IBMER accordance certificate. Testing units: Fraunhofer-Institut für Solare Energiesysteme ISE; Instytut Paliw i Energii odnawialnej w Warszawie.
