Supo(Xiamen)Intelligent Equipment Co.,Ltd products

166mm 182mm 210mm 5BB 6BB 9BB 10BB 12BB 13BB MBB Solar Cells Automatic Tabber Stringer. Tabber stringer is to weld the solar cells one by one through copper ribbon, and the cells are connected in series to form a string, the speed is 3400-3600PCS/hour or 6000cells/hour.

Net capacity: 1250-1400 cells/hour. Cell size: 30-166*166mm. Cell thickness: 160um~300um. Busbar: 5BB 6BB 9BB change over time 0.5H(feature). Ribbon width: 0.6mm-1.5mm. Busbar thickness: 0.15-0.21mm. Ribbon position: Less than 0.1mm shift. Flux coating: Sunk auto coating flux. Soldering method: Infrared heating. Breakage rate: ≤0.1%(A Grade Solar Cell). String length: 2100mm(2-12pcs). Length tolerance: ±0.5mm. Straightness tolerance: ±0.5mm. Cell gap: 0.8-30mm(adjustable). Cell position : Mechanic Position. Cell string transmission : Teflon transmitation belt, driven by servo motor. Cell defect detection type: crack/cold welding/cell reveral /surface stain by Eye Visual. Layup method : Automatic layup/manual layup. HMI : Integrated touch screen IPC with cantilever operation box and English/Chinese interface. Uptime : ≥95%.

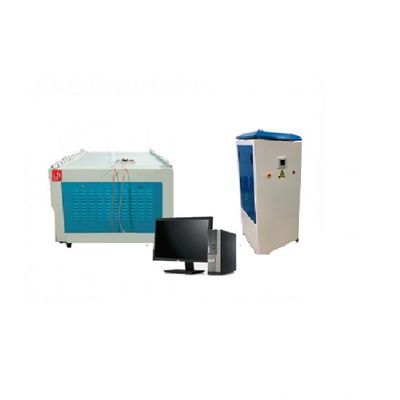

Application:Mainly used in automatic test and result record of solar, mono-crystalline silicon, poly-crystalline silicon solar cell, module and thin-film module. Products Features: 1. Flash impulse continuous adjustable range 0-60ms, 2. Four-line measurement; 14-bit 4-channel high-speed synchronous acquisition card, 8000 data collecting point; 3. 10 parameters display; measured parameter display in tabulation and graphic way; 4. Irradiance automatically compensating; temperature automatically compensating; 5. Voice counts off and prompts of flash time; counting prompts of flash time, 6. 24 consecutive hours of work, working life of imports Xenon lamp is 300,000 times of flash, 7. Patented Design with high quality key components, 8. Touch-screen control, 9. Independent explosion proof control cabinet, 10.Dell Computer

Application:Mainly used in automatic test and result record of solar, mono-crystalline silicon, poly-crystalline silicon solar cell, module and thin-film module. Products Features: 1. Flash impulse continuous adjustable range 0-60ms; 2. Four-line measurement; 14-bit 4-channel high-speed synchronous acquisition card, 8000 data collecting point; 3. 10 parameters display; measured parameter display in tabulation and graphic way; 4. Irradiance automatically compensating; temperature automatically compensating; 5. Voice counts off and prompts of flash time; counting prompts of flash time; 6. 24 consecutive hours of work, working life of imports Xenon lamp is 300,000 times of flash; 7. Patented Design with high quality key components; 8. Touch-screen control; 9. Independent explosion proof control cabinet; 10.Dell Computer

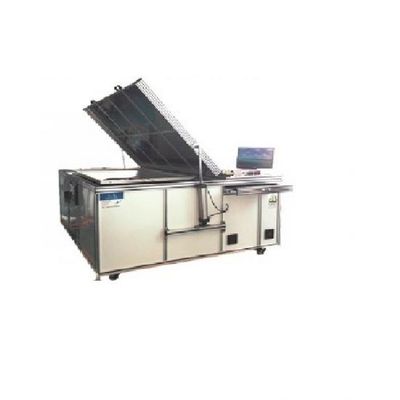

Application:Defects of solar cell material(debris, cracked, broken gate, pollution); Defects from the welding process(weld, desoldering); Mix different levels cell. Technical Features: Its highly sensitive infrared camera can defective solar module, which, can help users know the solar module and panel from defects in material, or workmanship defects, The equipment can be applied before and after lamination process, defect, detector is an important and effective process monitoring and testing equipment, It consists of a set of specialized optical imaging systems and high-sensitivity camera module, which is available to user in the preparation process, product quality testing
