Tainergy Tech Co., Ltd. products

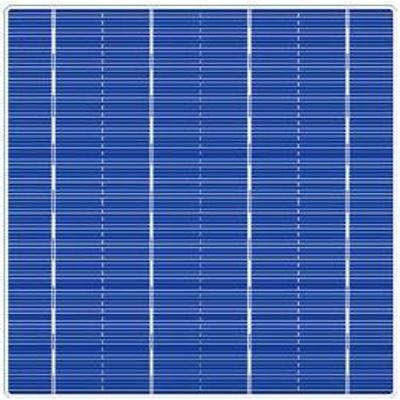

Dimension:6"Inch. Specification: 156.75mm*156.75mm

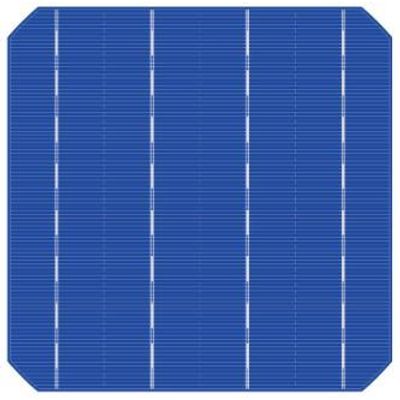

Dimension:6"Inch. Specification:156.75mm*156.75mm.

Perfect appearance and color uniformity. Greatly reduce LID effect. Specified reverse current to lower the risk for long term. High shunt resistance. Low breakage rate. Low power loss in any environment condition. High life time, stability, reliability and performance. Calibrated against Fraunhofer ISE.

High CTM resistance. Perfect appearance and color uniformity. Low LID. Low reverse current. High shunt resistance. Low breakage rate. Low power loss in any environment condition. High life time, stability, reliability and performance.

Maximum Power (Pmax): 100 W(±5%). Maximum Power Voltage (Vmp): 18 V(±5%). Maximum Power Current (Imp): 5.56 A(±5%). Folding size(L x W x H): 675 x 555 x 55mm.  Weight(kg): 8 kg.  Frame: Silver anodized Aluminum. Junction Box & Cable: IP67 J-Box;0.9m 4.0 mm2 Solar Cable;MC4 Connector.

Extreme light weight and easy installation. Mounted with Micro-inverter to give. DC -> AC with high efficiency.

Feature: Easy to carry. Lightweight and foldable. Convenient storage. High efficiency. Extremely thin.

PID free module. Anti-PID cell technology. Anti-PID encapsulation technology.

PID free module. Anti-PID cell technology. Anti-PID encapsulation technology.

Built-in Lithium Nickel Manganese Cobalt (Li-NMC) battery can avoid failure from flood & theft. High-capacity lithium 325Wh may supply power to LED street lamps over 8 hours. Light weight only 5.5kg. It can be easily installed. High-performance solar module 20V/2A, lithium battery rechargeable only 8 hours to complete. Built-in Smart Lithium battery charging circuit, two-way LED lamp driver circuit, and a lithium battery protection circuit, not require any plug-in chargers or LED drivers. Direct output for 2 LED lights, power output (24W+12W), available software to adjust the power output at different times for energy efficiency and prolong lithium battery usage time.
