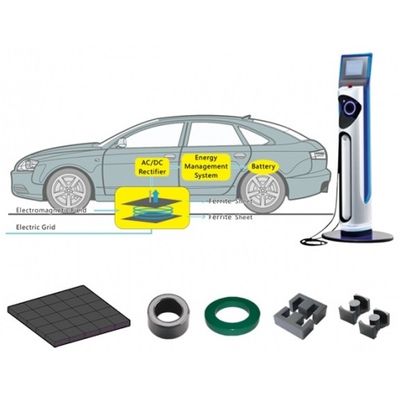

Applications ; Tx/ Rx Coil of Wireless Charger. Features : Improving the charging efficiency. Reducing the magnetic field interference. Specifications : Material : MnZn/ NiZn Ferrite. Type : I Core.

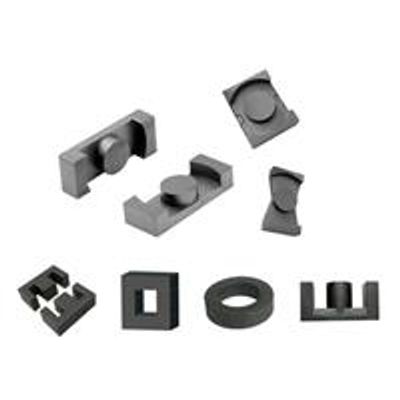

ER114 Core: for Superpower Transformer. EE70 Core: Solar inverter output choke. PQ65 Core: for PV Inverter. T63~T102 Core: for Power Filter. 170/ 180 Block Core: for PFC Inductor.

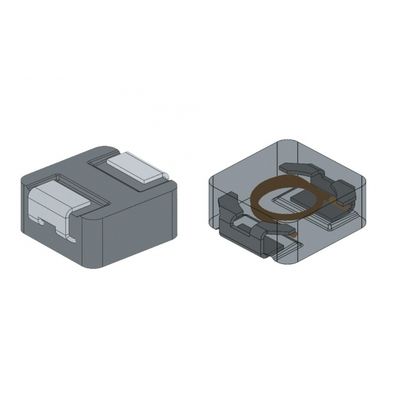

Power Inductor -Choke -Linear Coil Chip Inductor -Cable Filter -Noise Filter •Common Mode Coil EMI filter inductor •Medium Cycle Transformer

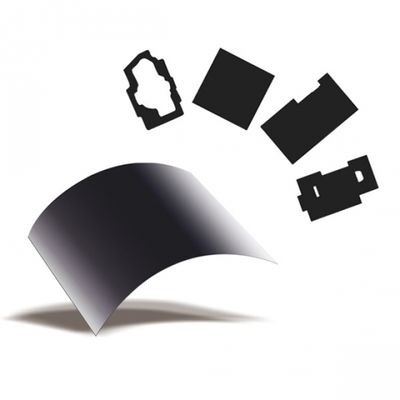

Applications - Tx / Rx Coil of Wireless Charger. Features; Improving the charging efficiency. Reducing the magnetic field interference. Specifications; Material : MnZn ferrite/NiZnferrite/Ferrite sheet. Type : T core / I core.

Power Inductor. Choke -Linear Coil. Chip Inductor -Cable Filter -Noise Filter. Common Mode Coil EMI filter inductor. Medium Cycle Transformer.

High Voltage Transformer. DC/DC Converter. LCD Backlight Transformers.

Applications; NFC Mobile Phone. Contactless IC Card. RFID Read/ Write Device/ RFID Label.

Power Inductor Choke -Linear Coil, Chip Inductor -Cable Filter -Noise Filter, Common Mode Coil -EMI filter inductor •Medium Cycle Transformer

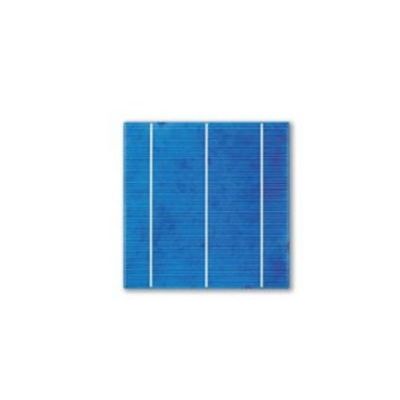

Substrate materlal P-type Potycrystal wafer.Length of a side156xl56(mm) ±0.5 mm.Diameter    219mm ±1 mm (8 inches).Thickness 200±20um.Acreage 243cm2.Front (—)    Front silver electrode Silicon nitride reflection coating.Back (+)    Argentalium back electrode AI-BSF.Working temperature -40*C - +60*C.Picture of practi callty Picture-1* Picture-2.Printing pattern Picture-3* Picture-4

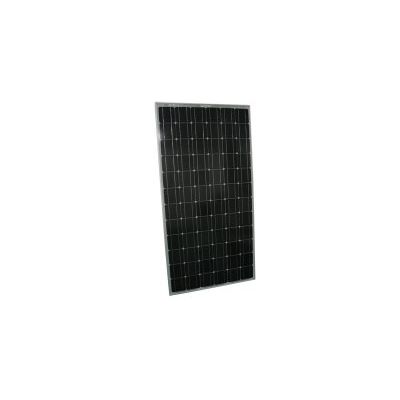

Battery chip mono-crystal 156 x 60 Slice (10x6).Glass 3.2mm High-transmittance glass with low-iron suede.Frame mount Anodized aluminium alloy.Connecting box TUV Certification, MC4 connector* length of cable 900mm.Dimension(A x B X C) 1650 x992 x50mm.Weight 19.5kg.Mechanical load 5400Pa
