Techno Group of Trade and Industries products
GRP SMC Products
Techno - Single Consumer Electrical Meter Box
Model No: FP 1101 91. Body Material: SMC Fiberglass Reinforced Polyester. Color: Light Grey. Dimensions H* W*D (mm): 965 (H)*270 (W)*250 (D). Protection Level: IP 54. Connection Type: Direct Connection. Terminal Current Capacity: Up to 160Amps. Max. Meter Dimensions H*W*D (mm): 325(H)*200(W)*160(D). Max.Breaker Dimensions H*W*D (mm): 260(H)*140(W)*150(D).
Techno - Double Consumers Electrical Meter Box
Model No: FP 1101 92. Body Material: SMC Fiberglass Reinforced Polyester. Color: Light Grey. Dimensions H* W*D (mm): 965 (H)*560(W)*205(D). Protection Level: IP 54. Connection Type: Direct Connection. Terminal Current Capacity: Up to 160Amps. Max. Meter Dimensions H*W*D (mm): 325(H) *200 (W) *160(D). Max. Breaker Dimensions H*W*D (mm): 260(H)* 140(W)* 150(D).
Techno - Quadruple Consumers Electrical Meter Box
Body Material: SMC Fiberglass Reinforced Polyester. Color: Light Grey. Dimensions H* W*D (mm): 965(H)*965(W)*205(D). Protection Level: IP 54. Connection Type: Direct Connection. Terminal Current Capacity: Up to 160Amps. Max. Meter Dimensions H*W*D (mm): 325(H)*200(W)*160(D). Max.Breaker Dimensions H*W*D (mm): 260(H)*140(W)*150(D).
Techno - Current Transformer 500-630Amps Meter Box
Model No: FP 1101 99. Body Material: SMC Fiberglass Reinforced Polyester. Color: Light Grey. Dimensions H* W*D (mm): 965 (H) *785 (W) *205(D). Protection Level: IP 54. Connection Type: Direct Connection. Terminal Current Capacity: 500-630 Amps. Max. Meter Dimensions H*W*D (mm): 325(H)*200(W)*160(D). Max.Breaker Dimensions H*W*D (mm): 260(H)*140(W)*150(D).
GRP Infrastructural Products
Techno Group - Diesel Storage Tanks
Item code: 42 00 29. Material: GRP. Application: Fuel & amp; Diesel Tank.
Techno Steel - Aluminum Clamps

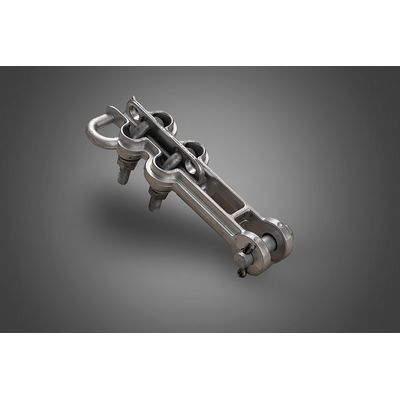

Straight line Dead - End Clamp
Description: Strain clamp 2 U bolt type ( Merlin). Item code: FP 5000 26. Product range: 45 KN (UTS). Material: Aluminum Alloy. Material Grade: LM 6. Application: Overhead Line. Approval: Saudi Electricity company. Finish: Shiny finish for the body, Hot Dip galvanized as per ASTM A 123. Ordered by: Item Code.
Techno Steel - Steel Plates
Techno - Double Arming Plate
Description: Double Arming Plate ( 100 x 12 x 700 mm). Item code: FP 5000 09. Material: Mild Steel. Material Grade: ASTM A 36. Application: Overhead Line. Approval: Saudi Electricity company. Finish: Hot Dip galvanized as per ASTM A 123. Ordered by: Item Code.
Techno Steel - Steel Brackets

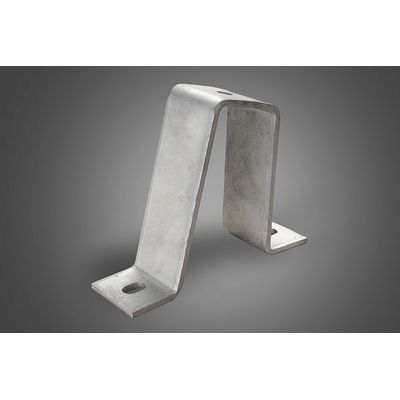

Techno - Horizontal Insulator Mounting Bracket
Item code: FP 5000 10. Material: Mild Steel. Material Grade: ASTM A 36. Application: Overhead Line. Approval: Saudi Electricity company. Finish: Hot Dip galvanized as per ASTM A 123. Ordered by: Item Code.
