Technology Dynamics Inc. products

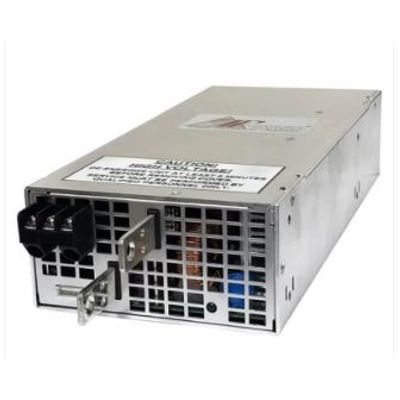

The TD RSP-1000 Series is a high-power, 1U form factor, AC-DC switching power supply capable of delivering up to 1000 watts. It includes standard features such as Power Factor Correction and Forced Current Share, designed for parallel and redundant operations. It caters to a range of output voltages including 12V, 15V, 24V, 28V, and 48V, and is available in both standalone and hot-swap configurations. With a universal input range of 90-264VAC and efficiency levels between 83% to 90%, this power supply is adaptable for various applications. It meets EN 61000 standards for harmonic control and features protections against overcurrent, overvoltage, and overheating. The cooling is managed via an internal ball-bearing DC fan, with operating temperatures ranging from -20°C to +50°C. Designed for reliability, it supports non-condensing environments and withstands vibrations up to 2G and shock loads up to 20G.

The TSD Series DC/DC Converters by Technology Dynamics is engineered for reliability in challenging environments. Offering a range of power output options from 25 to 150 Watts, these converters provide flexibility with voltage outputs including 5, 12, 15, and 24 Volts. Fully enclosed and isolated, they are designed for robustness, making them suitable for industrial, military, and commercial applications. Built to withstand harsh conditions, they feature rugged construction and are available in ruggedized COTS versions specifically for military use. Input voltage options range from 9-18 VDC to 72-144 VDC with line and load regulation maintained within a ±0.5% margin and ripple restricted to 1% peak-to-peak. Delivering typical efficiency at 80% and a minimum hold-up time of 20ms, these converters integrate protections against over-voltage, over-load, and over-temperature conditions. With an operating temperature range of 0°C to +55°C and storage temperature tolerance between -40°C to +85°C, these converters ensure longevity and performance.

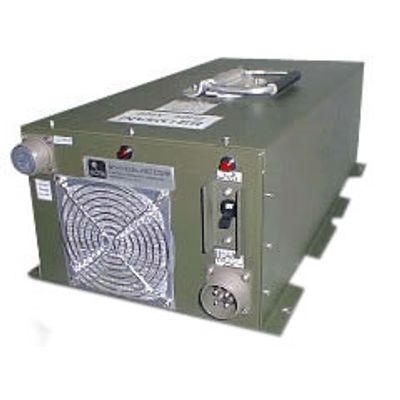

The TCP-BX-BBU Series is a self-contained battery backup system designed to ensure uninterrupted power supply in critical industrial, military, and commercial environments. The system includes an integrated power supply/charger alongside high-quality internal batteries, and features a low voltage battery disconnect circuit for reliable operation. Capable of extended run times, this series offers various output voltages tailored to specific requirements. Its AC input voltage range is from 90 to 264 VAC with a frequency standard from 47-63Hz, optimizing it for diverse applications. Efficiency is a consistent 85% with voltage regulation and various protection features such as overload and overvoltage, making it robust against electrical anomalies. Mechanically, it is durable with operating temperatures ranging from 0°C to 50°C, storage capabilities of -40°C to 85°C, and a compact structure weighing approximately 25lbs. The design adheres to UL 1950 and CSA 1402 standards, underlining its reliability and safety.

The TCP-LVBD Battery Charger is a Compact, Rugged Charger, ideal for Industrial, Military and Commercial applications. The Chargers are available in Standard, Modified and Full Custom designs in Portable Standalone, Rack and Wall Mount configurations. Universal Input, Power Factor Correction and Standard Connectors are just some of the features offered to charge your batteries safely, reliably and quickly. Please contact us today for a free comprehensive price quote.
