Thermconcept GmbH products

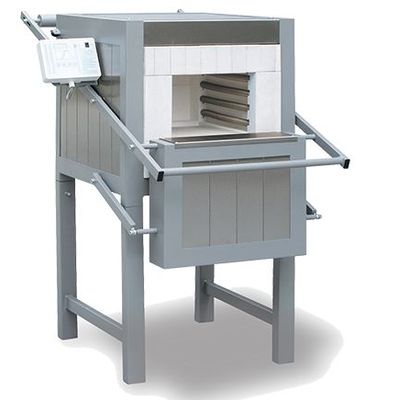

Model: HTK 16/16. Max. temperature: Max. temperature | C°: 1600°C. Inside dimensions: Inside dimensions | mm: W 200 x D 300 x H 260. Outside dimensions: Outside dimensions | mm: W 820 x D 655 x H 1650. Weight: Weight | kg: 310 kg. Volume: Volume | l: 16 l. Power: Power | kW: 11,0 kW. Voltage: Voltage | V: 400 3/N V.

Model: HTW 500/16. Max. temperature: Max. temperature | C°: 1600°C. Inside dimensions: Inside dimensions | mm: W 500 x D 1200 x H 800. Volume: Volume | l: 480 l. Power: Power | kW: 80,0 kW. Voltage: Voltage | V: 400 3/N V.

Charging plates and grates as additional protection for the furnace bottom. Lateral protective cover of the heating elements through silicon carbide boards. Lift door with hydraulic drive, operable via foot pedal or 2-hand operation (standard from KM 780/13). Automatic fresh air and exhaust air flaps, controlled via the program controller. Fresh air fan for forced cooling of the batch or exhaust gas discharge. Semi-gas-tight design with special sealing and gas connection for non-flammable protective gases. Gassing and hardening boxes and suitable charging aids.

Charging plates and grates as additional protection for the furnace bottom. Lateral protective cover of the heating elements through silicon carbide boards. Lift door with hydraulic drive, operable via foot pedal or 2-hand operation (standard from KM 780/13). Automatic fresh air and exhaust air flaps, controlled via the program controller. Fresh air fan for forced cooling of the batch or exhaust gas discharge. Semi-gas-tight design with special sealing and gas connection for non-flammable protective gases. Gassing and hardening boxes and suitable charging aids.

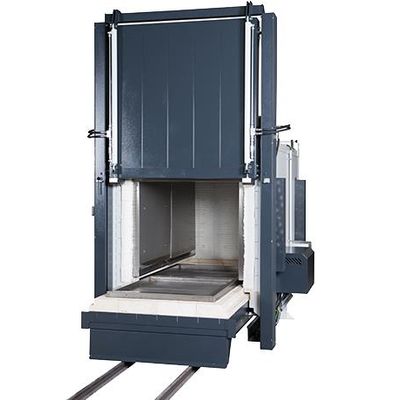

Bogie hearth furnaces particularly suitable for heat treatment of large batches with high load weight. Furnaces with maximum temperatures of 900 °C and 1280 °C. Robust housing constructions, double-walled design with rear ventilation for low outside wall temperature. Furnace door in standard version as parallel-guided swing door, simple and easy to use, with the warm side the away from the operator. Sturdy bogie with flange wheels on rails, incl. rails in front of the furnace. Heating elements of the bogie covered by SiC plates, easy loading due to flat support. Bottom slide and manual exhaust air flaps in the furnace roof. 5-sided heating (left, right, rear wall, door, bogie hearth), thereby extraordinary even temperature distribution.

Model: WM 1000/11. Max. temperature: Max. temperature | C°: 1100°C. Inside dimensions: Inside dimensions | mm: W 900 x D 2000 x H 600. Outside dimensions: Outside dimensions | mm: W 2350 x D 3050 x H 2650. Weight: Weight | kg: 1420 kg. Volume: Volume | l: 1080 l. Power: Power | kW: 55,0 kW. Voltage: Voltage | V: 400 3/N V.
