Thomas C. Wilson, LLC products

Tube Cleaning - Tube Cleaning Kits

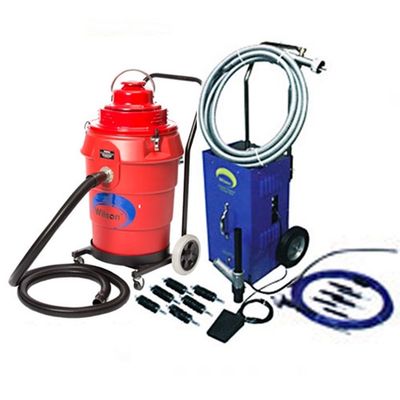

Wils-Away - 1hp Electric Plant Managers Kit

Our Wils-Away™ Electric Plant Manager`s Kit cleans both heat exchanger and boiler tubes, removing soot and scale from boilers, including light to medium soft deposits from heat exchangers. A variety of accessories and cleaning heads are available.

Tube Cleaning - Industrial Vacuum Cleaners

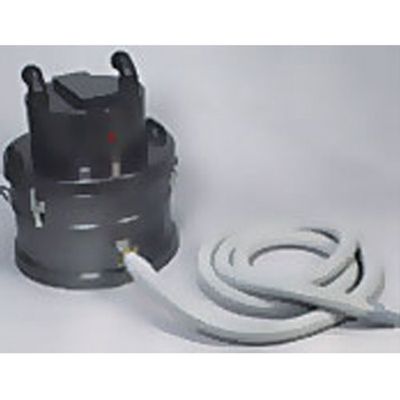

Boiler Soot Vacuum Cleaner Head, 4HP, No Drum

Wilson`s Boiler Soot Vacuum Cleaner Head, 4HP, No Drum is an accessory recommended for use with Wilson`s Vacuum Cleaners.

Tube Installation - Tube Expanders

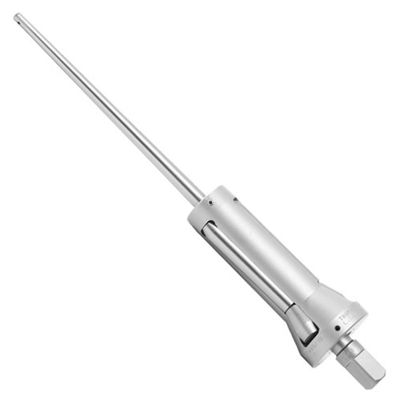

Wilson - 3-Roll Boiler Tube Expander, Parallel Expanding, Single Flair Roll

Wilson`s Series 38 Expanders are designed for rolling and flaring in a single operation, provide excellent maneuverability, and convert to straight-roll expanders. They are suitable for water tube boilers, fire tube boilers, superheaters and economizers. They are made of selected chrome nickel alloy steel and treated in automatic electrically controlled furnaces to help ensure the longest possible service life.

Tube Installation - Rolling Motors & Controls

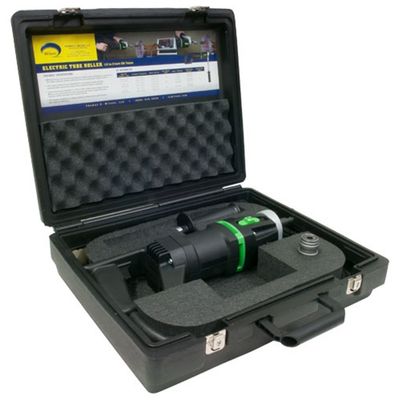

Electric Tube Roller

These non-torque, reversible electric drives are for rolling steel, copper and other non-ferrous tubes in boilers, heat exchangers and other pressure vessels. Some models feature a dead handle for added leverage.

Tube Installation - Tubesheet Hole Tools

Wilson - Tube Sheet Hole Grooving Tool

Wilson Grooving Tools groove tubesheets for heat exchangers, condensers, or boiler drums and can add strength to tube-to-tube seat joints and adjustment for depth of groove and position of tubesheets. Standard bits are 1/8 x 1/4 x 1/8, but other bit configurations are available upon request. Wilson Grooving Tools for heat exchangers are available in 5/8 to 3-inch (15.9 - 76.2) Outer Diameter with Morse taper drives of + #3, #4, and #5. The weight of Wilson Grooving Tools ranges from 3 to 26 (1.4 - 11.8 Kg) pounds.

Tube Installation - Tube End Facing Tools

Wilson - Tube End Facing Tool

The Wilson Fixed Type Tube End Facing Tool features an adjustable collar that provides projection control for flute high-speed steel and allows for simple replacement of pilots. This tool can be used on tubes with a 1/4 to 9/16-inch Outer Diameter (6.4 – 14.3mm).

Tube Removal - Tube Cutting Tools

1-Revolution Condenser Tube Cutter

One Revolution Tube Cutters are used in heat exchangers. They cut up to 10-inch thick tubesheets and tube with 1/2 to 1 1/2-inch (12.7 – 38.1mm) Outer Diameter. No special drives are required as Wilson Tube Cutters can be used with a hand wrench or ratchet. These tube cutters are manually operated by a hand wrench or ratchet and can be effectively used to vent tubes before plugging.
