Time Mark Corporation products

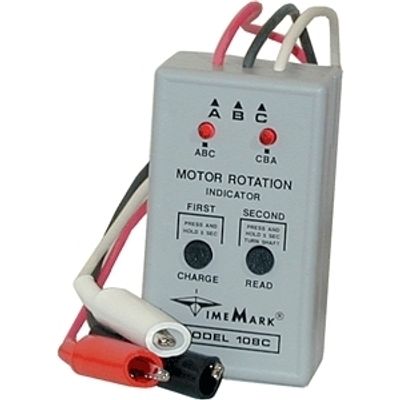

The Model 108C Motor Rotation Indicator is designed to quickly and accurately determine the direction of shaft rotation in electric motors, effectively preventing mechanical damage which can occur from improper rotation. Particularly useful in the installation of conveyor lines, pump systems, and other interconnected drives, this testing device simplifies the process of ensuring correct motor connection. With color-coded leads for phase identification—Red for phase A, Black for phase B, and White for phase C—the Model 108C allows for swift and efficient motor installation. While currently out of stock, this compact tester is an essential tool for electrical technicians and engineers in industries reliant on precise motor operation.

The Model 30 Multifunction High Voltage Timer is engineered to provide precise control and reliability across various industrial applications. Featuring a digital design, it ensures high accuracy and repeatability in operations, catering to complex timing requirements. The device incorporates a heavy-duty DPDT electro-mechanical relay output and offers flexibility with four DIP switches allowing selection between different timing functions and ranges. With a broad delay time span from 0.1 seconds to 1023 hours, it suits multiple scenarios. This timer supports 240/480VAC operations and includes surface mount capabilities, making it adaptable to diverse setups. LED indicators provide straightforward status visibility, enhancing operational clarity. Although currently out of stock, this model remains crucial for environments demanding efficient and robust timing solutions.

The Model 171 from Time Mark Corporation is an AC current monitor rigorously designed to identify undercurrent conditions. It features a unique microcontroller-based circuit that continuously monitors current via an integral shunt resistor, consequently actuating an electromechanical SPDT relay. The system includes dual status indicators to display relay operations, fault conditions, and timing events. An adjustable trip delay feature curtails unwanted trigger events, while an adjustable restart delay supports operations where sequential load start is necessary. Despite its out-of-stock status, the 171 model remains a vital solution for industries requiring stringent current monitoring. Its standard configurations consist of 8-Pin integration, 1A relay contact ratings, and a functioning voltage of 120VAC, ensuring compatibility with diverse industrial environments.

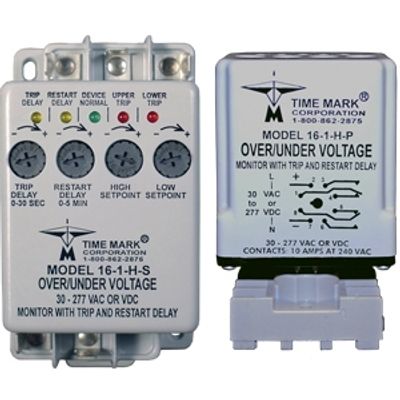

The 16-1-H-P Voltage & Frequency Monitor by Time Mark Corporation is engineered to safeguard equipment from damaging over, under, or rapid cycling voltage conditions. This model offers the flexibility to adjust or disable trip and restart delays, accommodating input voltage ranges of 12-30 VAC/VDC or 30-277 VAC/VDC. Designed for both 8-pin plug-in and surface mount configurations, the device uses Time Mark's microcontroller-based sensing circuit to deactivate relays upon harmful voltage detection. The relays reengage once appropriate voltage levels are restored, providing a reliable solution for preventing nuisances and protecting sensitive machinery. The 8-pin variant necessitates an 8-pin socket, like the Model 51X120. This product remains out of stock, reflecting its controlled demand for those seeking robust voltage monitoring solutions in industrial applications.
