Custom Magnetics

Triad Magnetics - Custom Power Transformers

Triad Magnetics specializes in the development and production of custom power transformers, essential for many electronics and electrical applications due to their ability to effectively transfer and modify electrical energy between circuits. These transformers are available in both standard and custom models, catering to a broad range of project requirements. With power ratings from 0.010VA to 10kVA and frequency ratings from 20Hz to 500kHz, they offer versatility and adaptability. Triad's custom transformers include configurations such as series and parallel, UL insulation systems from 130°C to 200°C, and various core materials like iron, nickel, magnesium, silicon steel, and zinc. Their ISO 9001:2015 certified design center supports rapid prototyping and rigorous testing, ensuring high-quality solutions tailored to specific applications. This facility, coupled with the expertise of their engineering team, allows for the customization or adaptation of their electrical products to meet unique customer specifications. This approach underscores Triad's commitment to delivering durable and reliable transformers optimized for diverse power applications.

Triad Magnetics - Custom Inductors and Chokes for Electronic Devices

Triad Magnetics specializes in the design and manufacture of custom inductors and chokes, which are crucial components in a multitude of electronic devices. While off-the-shelf solutions are available, specific applications often require tailored components to meet unique operational challenges. Triad Magnetics offers a broad range of customization options, leveraging a variety of materials including magnetic wire, Litz wire, and copper and aluminum foil. These components are manufactured to meet strict standards such as CSA, UL, and MIL PRF 27 for consumer safety and aerospace applications. Triad designs its products to handle cutting-edge magnetic core materials and provides options for antifungal, non-nutrient, and corrosion-resistant coatings. Furthermore, they offer a range of mounting configurations and lead terminations to suit different client specifications. The custom inductor and choke solutions from Triad Magnetics are known for their precision and ability to perform optimally in demanding environments.

Power Transformers - Medical Grade Isolation Power Transformers

Triad Magnetics - Medical Grade Isolation Power Transformer MD-250-E

The MD-250-E is a medical grade isolation power transformer designed with extensive safety and reliability features suitable for medical applications. Operating at a frequency of 50 to 60 Hz, it has an impressive capacity to handle up to 250 VA of power. It features an input voltage range of 120 to 240 V with a tolerance of ±10%, ensuring versatile usage in various settings. The transformer includes robust electrical isolation with a high-potential (Hi-Pot) input to output voltage rating of 3000 V and a ground rating of 1500 V. With an efficiency of 92% at full load, it operates in ambient temperatures not exceeding 60ºC. The leakage current is maintained below 50 µA to comply with medical safety standards. Constructed with a steel powder-coated enclosure, it also provides certified compliance to UL 60601-1 and CSA-C22.2 medical standards. The design includes rubber feet for horizontal mounting and comes equipped with a 11 ft medical grade power cord and duplex receptacle for user convenience.

Triad Magnetics - Medical Grade Isolation Power Transformer

The MD-250-U is a medical grade isolation power transformer designed for use in medical environments where reliable electric isolation is vital. It provides a maximum power output of 250 VA and an input voltage of 120 V with a tolerance of ±10%. The transformer operates at both 50 Hz and 60 Hz frequencies, making it versatile for various applications. It features an alternating current output voltage at a maximum load of 2.08 A and ensures a typical voltage regulation of 8% from full load to no load. The device is engineered with high safety standards, being certified to UL 60601-1 and CSA-C22.2 medical standards, though not suited for life-critical applications. The transformer exhibits a high efficiency of 92% at full load and maintains a leakage current of less than 50 µA. Constructed with a steel enclosure that is powder-coated white, it is designed for horizontal mounting with rubber feet. The MD-250-U is built to withstand operational conditions up to 60 °C ambient temperature and adheres to industry standards such as CSA, cULus, and RoHS 2015/863/EU compliance.

Current Sense Transformers - CST206/CST306 Series High Frequency Current Sense Transformers

Triad Magnetics - High Frequency Current Sense Transformers

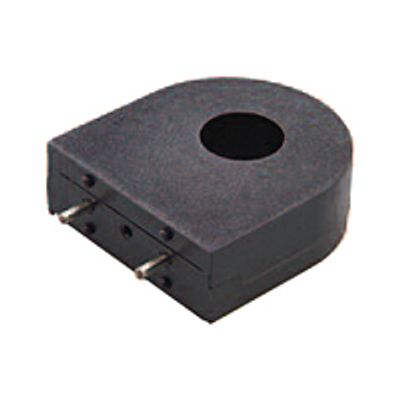

The CST206/CST306 Series is a high frequency current sense transformer designed for applications requiring accurate current measurement in circuits operating within the 20 to 200 kHz range. These transformers feature an ET VµSEC REF of 2000, turns count of 100, and a primary RMS current rating of 110.0 A. The minimum inductance of these models is 14.0 mH, with a maximum DCR of 0.580 Ohm. The overall turn ratio is set at 100. Constructed with UL-rated material to sustain temperatures up to 130 ºC, the CST206 models are engineered to handle temperature rises of approximately 40 ºC under rated primary current conditions. These transformers require derating of the ET product by specific percentages when operating at varying frequencies and unidirectional operations. With flexible design, these models include options for 3-pin or center-tapped configurations.
