TRIC Tools, Inc. products

Pulling force: 38 tons @ 4,000 psi. Piston area: 19.24 square inches. Hydraulic flow rate: 10 to 30 GPM. Cable size: 3/4″, 7/8″. Puller weight: 155 pounds. 12” pulley base: 131 pounds (15” L x 14” W x 19” H). 24” x 1” steel resistance plate: 50 pounds. Pipe materials, routes, and ground conditions vary greatly. Please consult TRIC technical support for the optimal use of your equipment.

Pulling force: 51 tons @ 4,000 psi. Piston area: 25.13 square inches. Hydraulic flow rate: 10 to 30 GPM. Cable size: 3/4″, 7/8″. Puller weight: 138 pounds. 12” pulley base: 131 pounds (15” L x 14” W x 19” H). 24” x 1” steel resistance plate: 50 pounds. Pipe materials, routes, and ground conditions vary greatly. Please consult TRIC technical support for the optimal use of your equipment.

The 4” Pre-Burster Assembly is used to burst the old or damaged 3” pipe while upsizing to a new 4” replacement pipe. The Pre-Burster slips over the cable, and is pulled along in front of the 4” Head Assembly. The Pre-Burster Shell (TT-HEAD-4PRE) has two of the 4” Blades (TT-HEAD-4BLD) that are retained with Flat Screws (TT-FSNR-BA375F).

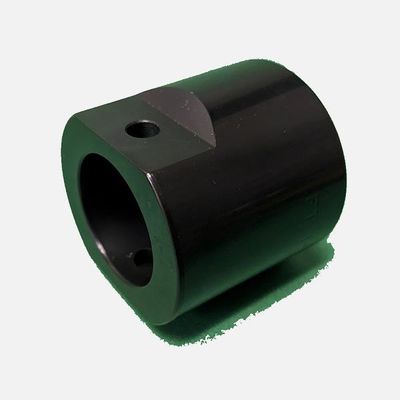

The 1″ Copper Nut is used when attaching a new 1″ copper line to be pulled in behind the 1″ Water Line Bursting Heads (such as TT-WDGE-1WED). The Copper Flaring Tool (TT-WDGE-CFT) is used to flare the new copper pipe before it is attached to the head using the 1″ Copper Nut. Be sure to put the nut on the new pipe before flaring it! The Manufacturer’s user guide is provided under the ‘Documents’ tab.

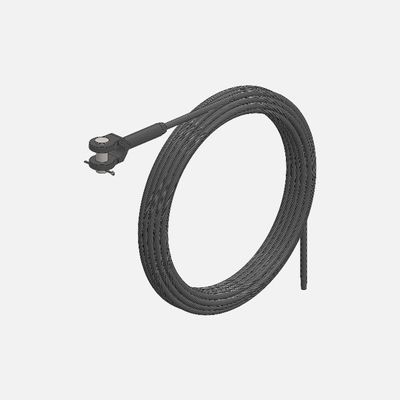

This is a 3/4″ diameter, compact swaged cable by 100 feet long. The end is terminated with a Crosby Open Socket for pulling TRIC products such as the 4″ Quick Lock Head Assembly (TTA-QLHA-4ASM), and he other end of the cable is brazed for use with the 2″ and 3″ Triple-Chuck Heads (TTA-TCHEAD-3ASM). This cable can be pulled with 3/4″ Monolithic Grippers (TTA-GA-34ML/TTA-SGA-34ML) in a TRIC puller.

This is a 3/4″ diameter, compact swaged cable by 150 feet long. The end is terminated with a Crosby Open Socket for pulling TRIC products such as the 4″ Quick Lock Head Assembly (TTA-QLHA-4ASM), and he other end of the cable is brazed for use with the 2″ and 3″ Triple-Chuck Heads (TTA-TCHEAD-3ASM). This cable can be pulled with 3/4″ Monolithic Grippers (TTA-GA-34ML/TTA-SGA-34ML) in a TRIC puller.
