Typhoon HIL Inc. products

Tailored for automotive drives with the most detailed inverter models, spatial-harmonic electric motor models, CAN connectivity, and plug and play interface towards 3rd party test automation tools.

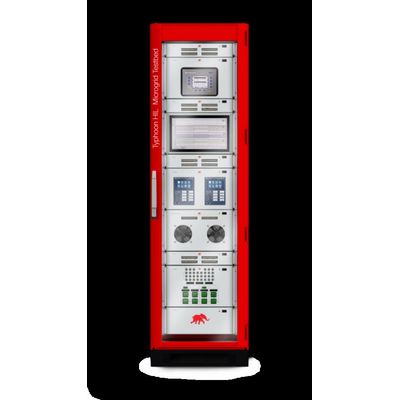

Solar and wind power generation, as well as battery storage, are all part of today’s microgrids. Together with protective relays, communication networks and microgrid controllers they are complex power systems that need thorough testing and verification before their safe and reliable operation can be guaranteed in all operating conditions. Distribution grids are undergoing rapid transformation that is fueled by introduction of intermittent and distributed power sources and by extensive application of information and communication technologies. Such transformation brings opportunities to make the distribution grid more resilient and more flexible. At the same time, it needs advanced testing tools to ensure the acceptable cost of quality.

HIL Launchpad Interface provides a pin-to-pin compatible interface between Typhoon HIL emulators and C2000 series Launchpads. In less than 5 minutes you can plug a HIL Launchpad Interface to a Typhoon HIL real-time emulator, map the signals and run with a closed loop control. You can now focus on DSP control code development, without worrying about schematic and PCB design. Analog outputs are also available to plug directly into an oscilloscope without any hassle.
