Unipower AB products

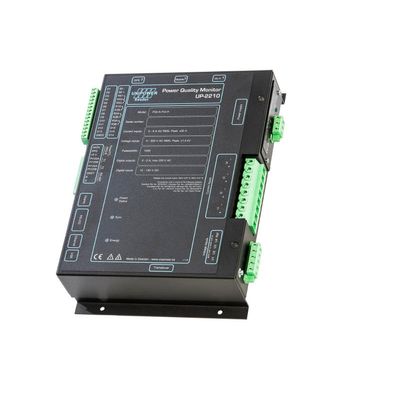

The nodes in the PQ Secure system consist of UP-2210 meters. Class A power quality measurement. The UP-2210 unit works as an advanced power quality meter and at the same time as a fault recorder. All of the power quality parameters can be analysed in accordance with voltage quality standards such as the EN 50160 or national regulations such as the Swedish EIFS. The UP-2210 unit captures both steady state disturbances (harmonics, flicker etc) as well as rapid voltage changes (sag/swell events and fast transients). Event list, graphical data, and reports. The PQ Secure system will automatically transfer data from the UP-2210 units to the central database according to a user-specified time schedule. The software will also analyse the measure result and show it as events in an event list or as graphical data. The software also has an automatic report generator that can create reports in accordance with international power quality measurement standards such as EN 50160.

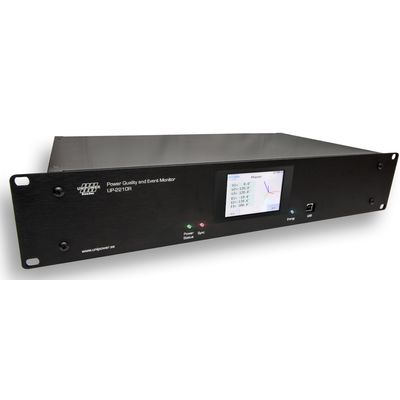

The nodes in the PQ Secure system consist of UP-2210(R) meters. The UP-2210R unit works as an advanced power quality meter and at the same time as a fault recorder. All of the power quality parameters can be analysed in accordance with voltage quality standards such as the EN 50160 or any national/international regulation. The UP-2210R unit captures both steady state disturbances (harmonics, flicker etc.) as well as rapid voltage changes (sag/swell events and fast transients). Sampling Rate: Basic Sampling Rate 5 000 samples/cycle (50Hz). Map and event list, graphical data, and reports. The PQ Secure system will automatically transfer data from the UP-2210R units to the central database according to a user-specified time schedule. The PQ Secure software will also analyse the measure result, show events, display graphical data, generate reports, send alarms and much more.

Unilyzer 900c is the little brother to our unique portable instrument Unilyzer 900. Unilyzer 900c is a cost effective alternative for those who do not measure on a continuous basis or who need a larger amount of instruments. The instrument complies with IEC 61000-4-30 Class S. Like its big brother, the 900c has integrated Wi-Fi and IP65 rating to withstand rough environments. The innovative design includes integrated Wi-Fi and a free App available at Google Play for real time monitoring and remote download. Climbing up the pole or entering a danger zone is no longer required to read your data, just connect with your laptop or Android smartphone/tablet while still in your car. Ease of use and safety cannot be higher. The instrument is light weight – only 700g and fits in your hand.
