Velocity Boiler Works products

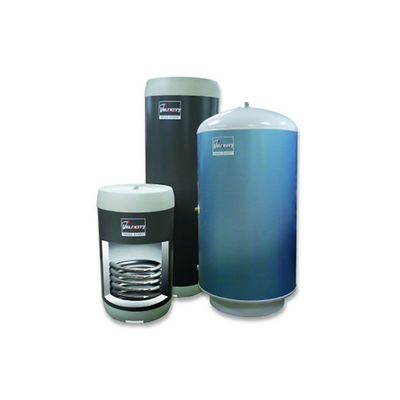

The Mega-Stor II is a stainless-steel, indirect water heater that provides abundant domestic hot water powered by a variety of efficient Velocity boilers to fit every application. Available in several sizes, it has a rugged design with a coated steel jacket and heavy-duty polymer top and bottom to resist cracks and abrasions (sizes 30-75). This product is robotically welded, hydrostatically tested, and passivated for maximum corrosion resistance.

The Bali 2 Series (BWF) residential, cast iron, hot water boiler is a fully packaged, installer-ready product. An integral fan permits the venting directly through a wall. With the addition of an optional Direct Vent Kit it permits the option of using outside air for combustion. The Bali 2 comes with a Honeywell Integrated Boiler Control System that incorporates temperature control, circulator, fan, ignition functions, and a Low Water Cut-Off in a single module. The Bali 2 control system also includes an additional circulator output for a second heating zone or an indirect water heater like the Mega-Stor II. All controls are located inside the front vestibule, creating a clean look and space efficient design. With the controls located in the front of the boiler, supply and return tapping’s on both the left and right side and multiple vent options, the Bali 2 has the flexibility to fit most locations.

The Aruba 5 Series (AWR) residential, cast iron, hot water boiler is a fully-packaged, installer-ready product. The rear draft diverter provides a low-profile design that allows for closet applications on AWR models through the AWR210B. This atmospheric, gas-fired boiler is for use with a conventional chimney fueled with natural or LP gas. The Aruba 5 comes with a Honeywell Integrated Boiler Control System that incorporates temperature control, circulator and ignition functions and a Low Water Cut-Off in a single module. The Aruba 5 control system also includes an additional circulator output for a second heating zone or an indirect water heater like the Mega-Stor II. All controls are located inside the front vestibule, creating a clean look and space efficient design. With the controls located in the front of the boiler and supply/return tappings on both the left and right side, the Aruba 5 has flexible installation options to fit most locations.

The Phantom-X “C” Series is a commercial stainless-steel, water tube high-efficiency, condensing, gas-fired hot water boiler. The Phantom-X “C” Series is available for use with natural gas or LP gas and comes in 5 sizes, from 399MBH to 800MBH input. The Phantom-X “C” Series features a modulating burner with a 5:1 turndown ratio and a Thermal Efficiency rating of up to 97.0%. Standard features of the Phantom-X “C” Series control include domestic water priority with priority protection, warm weather shutdown, freeze protection, and pump exercise. The Phantom-X “C” Series control allows for multiple boiler installations with lead/lag for up to 8 boilers. The Phantom-X “C” Series also offers multiple venting options, and with their stackable design feature, they offer floor-space savings for those small mechanical room applications.

The VCHC68-96CBP is a multi-position compact design furnace, supporting the following configurations: horizontal left or right and downflow.
