WEG S.A products

The smallest Drive on the market. The CFW100 covers power levels from 0.18 to 0.75 kW (0.25 to 1 HP).

Easy and optimized resource for quick installation, programming and operating. The CFW10 covers power levels from 0.18 to 4 kW (0.25 to 5 HP). Make your life easier can be a fast installation or a built-in keypad to configure instead trimpot and dip switch or even a quick replacement of similar product. The CFW10 series are exactly all that together in a compact product.

Soft-Starters are static starters that accelerate, decelerate and protect three-phase induction motors. The control of the voltage applied to the motor by means of adjustments to the firing angle of thyristors allows the soft-starter to start and stop an electric motor smoothly. The SSW07, with DSP (Digital Signal Processor) control was designed for high performance on motor starts and stops with an excellent cost-benefit ratio. Easy to set up, it simplifies start-up activities and daily operation.

Soft-Starters are static starters that accelerate, decelerate and protect three-phase induction motors. The MV soft-starter WEG is available for power ratings from 550 kW up to 3400 kW. Voltage range: 2.3 kV - 6.9 kV. Soft-Starters are static starters that accelerate, decelerate and protect three-phase induction motors. The control of the voltage applied to the motor by means of adjustments to the firing angle of thyristors allows the soft-starter to start and stop an electric motor smoothly.

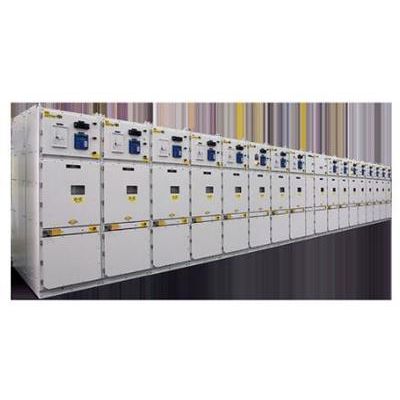

WEG Distribution and Control Switchgear are assembled and tested at the factory for voltages from 2.3 kV to 36 kV and developed to meet the strict national and international standards NBR IEC 62271 - 200 without losing their convenient assembly and maintenance features, as well as the flexibility to adapt to the different characteristics required by the market.
