Woodward, Inc. products

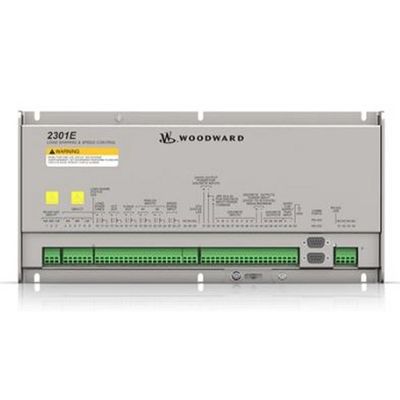

The 2301E Full Authority Speed Control sets the speed or load of a diesel or gas engine. The 2301E provides load sharing and speed control of generators being driven by diesel or gaseous engines. With built-in flexible configuration software, application variations can now be selected using an external computer (PC). Changing the application to accommodate engine speed range, gear teeth, and selection of forward or reverse acting is simply a matter of software setup.

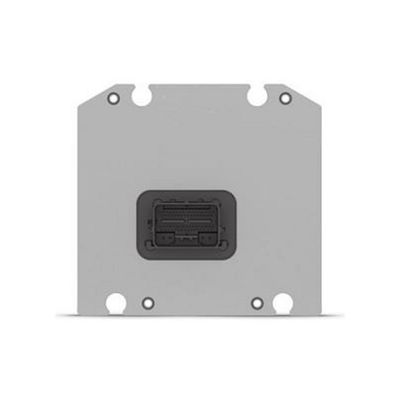

The SECM70 is part of the MotoHawk Control Solutions family of products. These products enable rapid development of control systems. The combination of off-the-shelf hardware and MotoHawk software allows developers to focus on the operational specifics of the application without worrying about the design details of the hardware. The result is that the same hardware used in development and prototyping efforts can be used for ongoing production. This unit provides 70 connector pins with inputs, outputs, and communications interfaces that support a wide variety of applications. SECM70 MY17 hardware can be calibrated in real time using MotoTune, ToolKit or commercially available calibration applications.

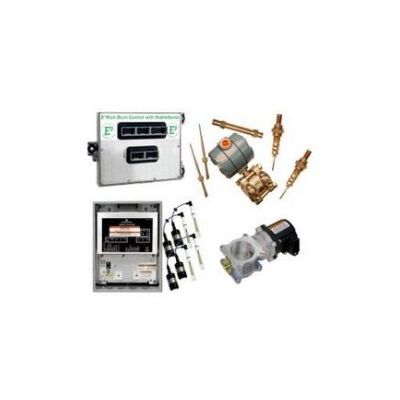

Keeping your natural gas engine in compliance is a fact of life for anyone operating a natural gas fueled reciprocating engine. Emission compliance adds costs to the maintenance of rich burn natural gas engines. Woodward’s E³ Rich Burn air to fuel ratio (AFR) control system for natural gas engines minimizes the resources needed to meet emissions compliance.

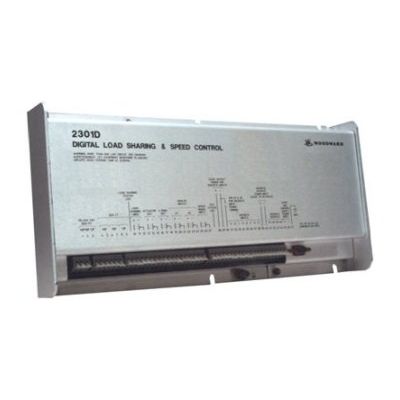

Woodward’s 2301D speed controls are used in electric generator systems where load sharing is desired. They are used with diesel or gas engines, or steam or gas turbines, and are compatible with all Woodward electronic controls. The microprocessor-based digital control is housed in a sheet-metal chassis and consists of a single printed circuit board. The flexible configuration software incorporated in the control hardware allows easy changes to accommodate engine speed range, gear teeth, and selection of forward or reverse acting.The increased flexibility of software allows the 2301D to include control functions that required additional equipment in previous versions of 2301A control systems. The 2301D therefore is suitable for upgrading existing control systems or increased functionality in new installations.The 2301D-EC is capable of communicating using a Modbus® RTU protocol, functioning as a Modbus slave device, via RS-232 or RS-422 drivers.

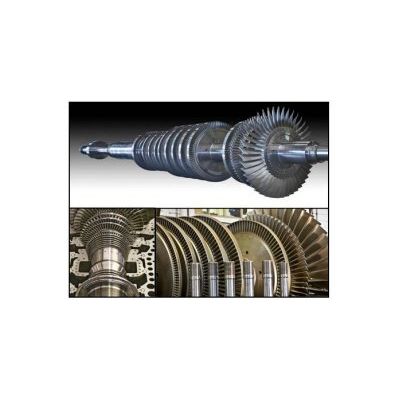

Woodward supplies a range of products (controls, valves, actuators, auxiliaries, combustion and safety systems) for gas and steam turbines and compressors. We strive to reduce total installed/operating cost and emissions while improving performance including availability, efficiency, start performance and operating range.
