XALT Energy products

Lithium-Ion Cells at the Heart of High Performance. XALT Energy is a true leader in cell technology. Our lithium-ion cell technology combines lithium-ion chemistry, low-impedance cell design and world class manufacturing systems to give customers an unprecedented cost/performance advantage over any other technology. Our automation processes deliver cell quality and consistency that is unlike any other in the world. Our precision automated stacking of electrodes gives your cells consistent cell performance and vastly improved lifetime. We offer NMC/Graphite chemistries to cover a wide range of applications. Each can be made into 2 sizes and a variety of different thicknesses. In addition, each has designs for the power to energy ratio needed.

The BMS is the “brains” of the XPAND system providing the monitoring, balancing and safety functionality for the system. The main job of the BMS is to maintain the lithium-ion cells within their safe operating range regardless of the demands being placed on them. This means the ability to accurately predict operating situations that have the potential for creating over-voltage or under-voltage conditions, as well as high or low temperature conditions – then reacting quickly and safely to prevent those conditions from occurring.

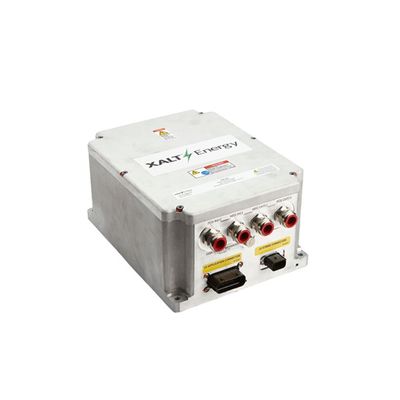

Battery Disconnect Unit/String Control Unit (BDU/SCU). The BDU manages individual strings of series-connected XMP subpacks through its on-board String Controller Unit (SCU), pre-charge circuit, current sensor, and contactors. For large XPAND systems of multiple parallel-connected strings, BDUs are connected in parallel. Compatible with 12V or 24V systems, Isolated high voltage measurements up to 1250 VDC, Current sensing capability -500A to +500A standard; up to ± 1200A optional, Redundant dual contactor controls ensure safe operation, Self-addressing provides simple installation and service, IP69 compliant (with connectors mated)

The XALT Energy Advantage: High specific energy and volumetric energy density, Intended for high power, high charge rate applications, Outstanding safety and abuse tolerance, Efficient direct liquid cooling maintains ideal cell temperatures, Easy to install, configure, and upgrade, ISO 9001:2015 certified production environment
