Yaskawa Solectria Solar products

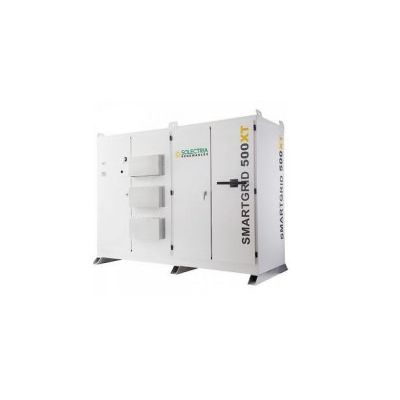

500kW, 600VDC, 208VAC Grid-Tied PV Inverter.Solectria Renewables’ SMARTGRID 500XT is compliant with NEC 2014 690.11 & 690.12 arc fault and rapid shutdown requirements. The SGI 500XT is the most reliable and efficient ulility-scale inverter in its class. Optimized for direct coupling to an external transformer, the SGI 500XT is the best choice for large commercial and utility-scale applications that demand the highest performance and reliability.

14kW and 20kW, 600VDC Transformerless String Inverters.Solectria Renewables’ PVI 14TL and PVI 20TL are compact, transformerless three-phase inverters with dual MPP tracker. These inverters come standard with AC and DC disconnects, user-interactive LCD, 8-fuse string combiner and DC arc-fault protection. Its small and lightweight design make for quick and easy installation and maintenance. These inverters include an enhanced DSP control, comprehensive protection functions, and advanced thermal design enabling highest reliability and uptime. They also come with a standard 10 year warranty with options for 15 and 20 years.

23kW, 28kW, and 36kW, 1000VDC Transformerless String Inverters.Solectria Renewables’ PVI 23TL, PVI 28TL, and PVI 36TL are compact, transformerless three-phase inverters with dual MPP tracker. These inverters come standard with AC and DC disconnects, user-interactive LCD, 8-fuse string combiner and DC arc-fault protection. Its small and lightweight design make for quick and easy installation and maintenance. These inverters include an enhanced DSP control, comprehensive protection functions, and advanced thermal design enabling highest reliability and uptime. They also come with a standard 10 year warranty with options for 15 and 20 years. Options include web-based monitoring, shade cover, DC/AC disconnect covers, DC combiners bypass, and roof mount array bracket.

Solectria Renewables’ PVI 3800TL, 5200TL, 6600tl , and 7600TL are compact, transformerless, single-phase inverters with the highest peak and CEC efficiencies in the industry. These inverters come standard with an integrated DC disconnect, DC arc-fault detection and interrupt, 1 or 2 MPP tracker(s), and a user-interactive LCD and keypad. Their small and lightweight design make for quick and easy installation and maintenance. They have an innovative passive cooling design which eliminates the need for fans in the inverter. These inverters include an enhanced DSP control, comprehensive protection functions, and advanced thermal design enabling highest reliability and uptime. They also come with a standard 10 year warranty.

Yaskawa - Solectria Solar’s string combiners feature the broadest product offering in the industry today. They offer the best quality, durability, ease-of-installation, mounting flexibility, and safety and protection features. Customers may choose between 600 or 1000 VDC, 8-30 fused positions and a wide range of fuse values. Enclosure options include powder coated steel (Type 4), 316 stainless steel (Type 4X), and fiberglass (Type 4X). These string combiners feature standard oversized compression lugs that allow for long-run output conductors and multiple conduit entry locations so it can be mounted vertically or horizontally - thus eliminating the need for labor-intensive conduit bends. Additional options include surge arrestors, MC4 or H4 PV connectors and connector plates for those installers who prefer compression terminals for oversized output conductors.

Yaskawa - Solectria Solar’s string combiners feature the broadest product offering available in the industry today. Our string combiners offer the highest quality and durability, allow for simplified installation and mounting flexibility, and provide the best safety and protection features. The 1,500 VDC combiners are available in 8-24 fused positions and include a wide range of fuse values allowing up to 36 string inputs. The standard enclosure is powder coated steel (Type 4) with the fiberglass (Type 4X) enclosure option available upon request. The DISCOM 1500 includes connection plates for compression terminals (2 per output up to 600 kcmil or 1 per output up to 750 kcmil) and 90˚C terminal rating.

Yaskawa - Solectria Solar’s ARCCOM offers customers the best quality, ease of installation, mounting flexibility, safety and protection features. It is compliant with NEC 2014 arc-fault and rapid shutdown requirements and contains a contactor disconnect, lockable switch and true string level arc-fault protection, allowing it to detect and interrupt a series arc. It is also built and designed for wide temperature ranges and rugged conditions. All components are vetted for highest reliability through Highly Accelerated Life Testing (HALT). The ARCCOM also features standard oversized compression lugs that allow for long-run output conductors and multiple conduit entry locations so it can be mounted vertically or horizontally - thus eliminating the need for labor-intensive conduit bends.

50kW, 60kW, 75kW, 85kW and 100kW Grid-Tied PV Inverters. The PVI 50-100KW inverters are compliant with NEC 2014 690.11 & 690.12 requirement when ordered with rapid shutdown option and the ARCCOM combiner. The most customizable full line of commercial grid-tied PV inverters available today, the PVI 50-100KW series has been utilized in projects ranging from 50kW to multi-megawatt solar farms, including a 30MW solar farm.

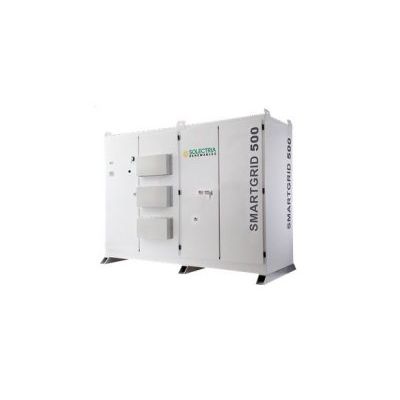

225kW, 250kW, 266kW, 300kW & 500kW Grid-Tied PV Inverters.Solectria Renewables’ SMARTGRID 225-500PE series of inverters is compliant with NEC 2014 690.11 & 690.12 arc fault and rapid shutdown requirements. This series boasts an industry leading 97.5% CEC weighted efficiency which translates into significantly greater energy production and cost savings over the lifetime of the system. The SGI line has been deployed in a large number of commercial and utility-scale PV systems across North America ranging from 200kW to multi-MW. Our customers find these to be the most cost-effective, reliable, and efficient inverters in the market.

50kW and 60kW, 1000VDC Transformerless String Inverters. Yaskawa Solectria Solar’s PVI 50TL and PVI 60TL are grid-tied, transformerless three-phase inverters designed for ground mount, rooftop and carport arrays and can be installed from 0 - 90 degrees. The PVI 50/60TL inverters are the most reliable, efficient and cost effective in their class. They come standard with AC and DC disconnects, three MPPTs, a 15-position string combiner, remote diagnostics, remote firmware upgrades and various protection features. Options include H4 wiring box, shade cover, DC combiner fuse bypass, and web-based monitoring. Yaskawa Solectria Solar’s three-phase string inverters, PVI 23/28/36/50/60TL paired with Tigo’s module level electronics provide a certified solution to UL1741 as a PV Module Level Rapid Shutdown System, for compliance with NEC 2014 & 2017 690.12(D) requirements.
