Z3 Controls Inc. products

The NetMeter-3P is a DIN rail mounted module that can measure over 50 electrical parameters from a 3-phase, split-phase, or up to 3-single phase loads. It is wired-in, to measure voltage and current, using current transformers. The Z3 sensor continuously monitors and calculates power use and stores the data in an internal memory. Both real-time and historical data is available through the built-in network gateway.

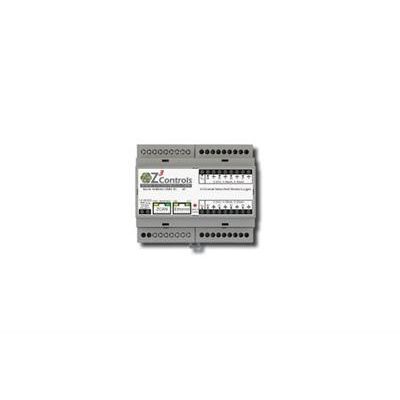

8-channel monitor/logger for pulse, current loop, and voltage output meters/sensors. The Z3 controls NetMeter-OMNI is a sophisticated and yet simple to use module intended for monitoring and measuring sensors, pulse meters, and other devices that produce a voltage (from 0 up to 24V), a current (0-20mA, 4-20mA), or a pulse (such as KYZ contacts or a voltage or current pulse).

The NetMeter-3P requires current transformers (CTs) to detect the load current. CTs are chosen for your application based on: The current rating of the circuit to be monitored. The physical size of the conductor or bus bar that each CT will be attached to. Ease of installation: "split core" CTs allow for installation without having to physically disconnect.

NetMeter devices use 24 Volt power. Small DIN mount power supplies are available from Z3 Controls: 24VDC @ 420mA (can power up to 3 NetMeters) - Part #: DSP-10-24. 24VDC @ 1.3A: Part #:DSP-30-24.

These small DIN mounted industrial grade Ethernet switches allow a single Ethernet drop to fan-out to multiple NetMeters.

This NEMA1 Kit includes: NEMA1 10"x10"x4". DIN rail. 110-240VAC to 24VDC Power Supply with ferruled hookup wires. Option for extended voltage power supply 320-600VAC. Ground terminals with ferruled grounding wires. 3/4" KO mounted RJ45 feedthrough with 1` Ethernet cable. NEMA1 10x10 Quick Guide. NetMeter-3P Installation Manual.

Wireless Cloud Based Electricity Sensors and Strap on Gas / Water Sensors
