Zampell Ltd. products

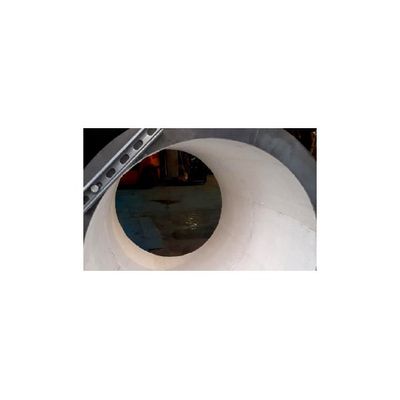

At our head office we operate our facility for the manufacture and supply of our fibre module lining systems. We have the capacity to manufacture standard and non-standard sized modular systems, ranging from 300mm to 2000mm long individual modules with thicknesses from 50mm – 400mm thick. We carry a full range of fibre products that include body soluble fibre, ceramic fibre, pyrolog and Mullite 1650ºC rated fibre.

From our manufacturing facility we produce our pre-fired refractory shapes. Our capacity ranges from small intricate burner quarls to large shapes up to 2 tonnes. Our drying furnace incorporates plc data log controllers to ensure all detailed temperatures and schedules are recorded and can fire shapes to 1250ºC. The facility can produce up to 6 tonnes a day of precast shapes, from various grades of refractory castables. We have our own carpentry fabrication facility for the manufacture of specific shaped moulds which allow us to remain competitive when offering this service to our customers.

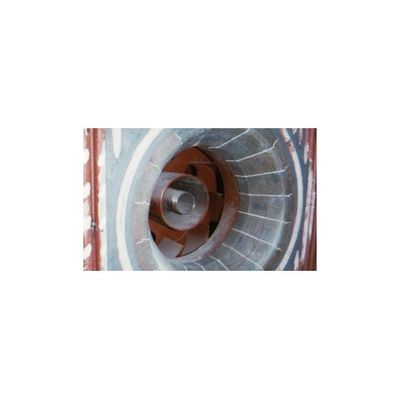

Zampell supply a market leading concealed fixing burner quarl tile system. Our system has long been adopted as the standard within the coal fired power generation industry.Our system is so reliable that installations have been successfully executed in over 20 countries worldwide to date. They are primarily manufactured from silicon carbide and are retained using a patented concealed fixing system that is made from high grade cast stainless steel. The system benefits includes a high resistance to slag adhesion, abrasion resistance for protection of tubes local to the burner which both result in less burner fouling, better heat transfer and increased burner firing efficiency.
