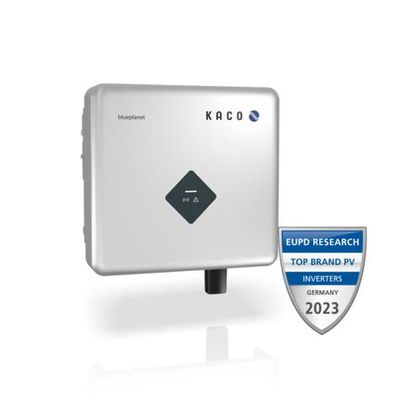

Kaco - Model Blueplanet 3.0 NX1 M2 – 5.0 NX1 M2 -1-Phase String Inverters
1-phase string inverters for residential solar PV plants: 3.0 / 3.7 / 4.0 / 5.0. With the blueplanet NX1 M2, KACO new energy presents its next generation of 1-phase inverters. Their hallmarks are particularly effortless design, commissioning and operation. The designation M2 stands for the number of MPP trackers, both of which can be loaded with 3,500 watts each. The blueplanet NX1 M2 are therefore suitable for any roof geometry.
The very wide design window of 100 V starting voltage - 80 V is the lowest operating voltage - to 580 V maximum DC voltage also contributes to easy planning. For operators, this means the greatest possible solar harvest at any time of day, in any season.
Heavy on features, light on weight
At 11 kilograms in weight and less than 38 centimeters in maximum extension, the blueplanet NX1 M2 make the entire logistics chain from storage to transportation to installation a breeze. The cabling is done via the familiar Sunclix connectors - special tools are not necessary.
Configuration and commissioning are quickly completed via the self-explanatory installation app. Afterwards, installers and operators can communicate with the inverters conveniently via WiFi. The blueplanet NX1 M2 operate in whisper mode with a minimum self-consumption of less than one watt.
- Simple installation, also outdoors (IP65)
- Quick Wi-Fi setup with App
- Smart monitoring with user-friendly App
- Lightweight (11 kg)
- Quiet performance (25dB)
