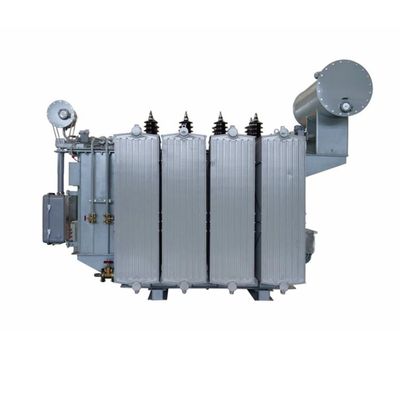

10 MVA 10000 KVA Power Transformer with OLTC 33KV To 33KV
SCOTECH‘s 10 MVA 33KV OLTC transformer was delivered to Zimbabwe in 2019 via an South Africa Company, this 10000 KVA transformer was supposed to be used in a substation for mining company, but the 33KV line voltage from the power grid is not stable, it jumps from 26 to 40kv frequently, so we designed this 33KV to 33KV OLTC transformer to regulate the primary voltage to get an stable 33KV output voltage. SCOTECH promise each one of our delivered transformers has passed the most strictly test and we remained 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Product: Oil Cooled Power Transformer
Rated Power: Up to 200 MVA
Primary Voltage: Up to 230 KV
10 MVA substation power transformer specification and data sheet
Year: 2019
Model: SZ11-10 MVA-33/33KV
Type: Oil Immersed Power Transformer
Standard: IEC60076
Rated Power: 10 MVA
Frequency: 50 HZ
Phase: Three
Cooling Type: ONAN
Primary Voltage: 33 KV
Secondary Voltage: 33 KV
Winding Material: Copper
Vector Group: Ynyn0
Impedance: 7%
Tap Changer: OLTC
Tapping Range: ±10*1.5% @ Primary Side
No Load Loss: 8.5 KW
On Load Loss: 72 KW
Accessories: Standard Configuration
Remarks: N/A
The core of the 10 MVA power transformer is made of high-quality grain orientated cold rolled silicon steel sheet, the silicon steel sheet is cut by advanced shear line and the burs is controlled within 0.02mm.
Winding: the winding of 10000 KVA transformer adopts high-grade oxygen free copper.
The most strictly quality control had been conducted for each of the transformer during the manufacturing process.
