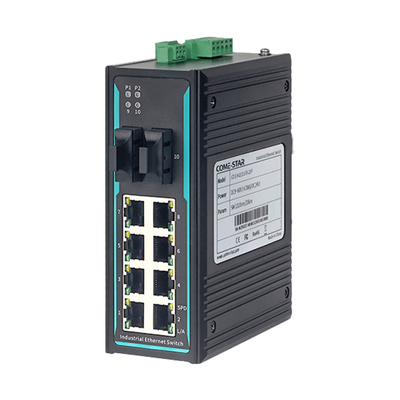

Come-Star - Model CIEN2210-2F -10-Port Unmanaged Industrial Ethernet Switch
The CIEN2210-2F is a 10-port Layer 2 100Mbps unmanaged DIN-rail industrial Ethernet switch. It is equipped with 2* 100Mbps fiber ports and 8* 100Mbps copper RJ45 ports, with model options supporting either DC 9–60V or AC/DC 220V power inputs to accommodate diverse installation environments. Each copper port features auto-sensing, full- or half-duplex operation, and automatic MDI/MDI-X detection, enabling flexible deployment and stable data exchange without manual configuration. Designed for plug-and-play industrial applications, the industrial unmanaged switch offers dependable communication performance to support evolving automation and value-added networking needs.
- 2 × 100Base-FX Ports, 8×10/100Base-T(X) Ports
- 100Base-FX ports support SC/ST/FC, SMF/MMF, wavelength, and transmission distance optional
- 10/100Base-T(X) ports support full/half duplex and auto MDI/MDI-X, plug and play
- IEEE 802.3x flow control in full-duplex mode and backpressure flow control in half-duplex mode
- Support 9216 Byte jumbo frames
- Relay output and status LED warning for power failure
- AC85V~264V/DC110V~370V power supply, or dual DC9V~60V inputs
- High-strength metal casing with IP40-rated protection
- -40°C to +75°C operating temperature range
Built with industrial-grade components and strict production standards, the CIEN2210-2F switch ensures long-term stability in harsh operating conditions. The device features a rugged metal enclosure, standard 35mm DIN-rail installation, and a wide operating temperature range of –40°C to +75°C to ensure reliable operation in environments subject to extreme temperatures, vibration, and electromagnetic interference. Each unit undergoes comprehensive functional, thermal, safety, and EMC testing to guarantee performance consistency across demanding industrial scenarios. The series is well suited for deployment in industrial automation, integrated energy systems, smart cities, intelligent transportation, and smart factory applications.
