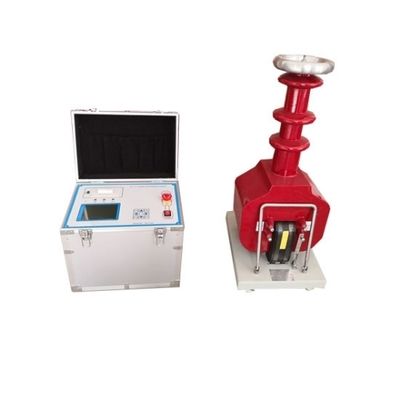

100 kV 5 kVA AC DC Automatic Hipot Tester

SHARE
Automatic AC DC hipot tester for sale, 5 kVA capacity, 100 kV output voltage, LCD display, with micro thermal printing function, easy to use. Measure the leakage current of DC high voltage side (0-140kV), a DC milliammeter with a range of 0-1.999ma can be selected.
Most popular related searches
high voltage test
high voltage testing
high voltage testing system
voltage testing system
high voltage equipment
high voltage electricity
electrical insulation material
voltage regulation
voltage regulating
electrical equipment

Model: SISCO-YDJ-5100A

Capacity: 5 kVA

Input Voltage: AC 110V/120V/220V

Frequency: 50Hz/ 60Hz

Output Voltage: 0-200V

Output Current: 0-25A

Weight: 31 kg

Size: 500mm*390mm*460mm

Timing Range: 0-999S

Ambient Temperature: -20?~50?

Voltage Accuracy: ≤1% (F.S)

Currency Accuracy: ≤1% (F.S)

Automatic AC DC hipot tester is a power supply equipment, a variety of electrical products and insulating tools material strength test necessary equipment, light weight, small volume, beautiful shape, stable performance, easy to use and carry, especially suitable for field operation.

The coil is formed by vacuum-casting epoxy resin
  • The magnetic flux leakage is effectively weakened, and the dielectric strength and moisture resistance are improved.
  • The new type of coil epoxy vacuum casting and CD-type iron core technology has a compact structure and no oil leakage

Small size, light weight and compact structure
  • Good safety and reliability, beautiful appearance
  • Simple and intuitive wiring, easy to use
Panel Descriptions
  • There are miniature thermal printers in AC and DC high voltage test equipment. Press the print button on the panel to print out the results.
  • The contrast of the LCD display can be adjusted.
  • Turn on the indicator light, which will light up when the test starts.
  • Zero indicator light. When the voltage regulator is at the zero position, this lamp will light.
  • Alarm indicator. When a fault or protective action occurs, the light is on.
  • LCD screen, 320X240 dot matrix, white backlight.
  • The wiring diagram, refer to the wiring diagram for AC and DC testing.
  • Keyboard, interactive terminal between user and device.
  • Buzzer, sound alarm.
  • An emergency stop button, press this button to cut off the power and end.

Application

sisco hipot tester has a small size, lightweight, compact structure, full functionality, easy to use, and other characteristics. Hipot tester performance can meet the user`s various special requirements sector, a variety of high-voltage electrical equipment, electrical components, and insulation materials for frequency withstand voltage test and DC leakage test, is an essential instrument in the high-voltage test.

Capacity: 5kVA

LV Side Voltage: 0-200V

LV Side Current: 0-25A

HV Side Voltage: AC 0-100kV, DC 0-140kV(negative)

HV Side Current: AC 50mA

Weight: 104 kg

Size: 1100mm*450mm*460mm

Measuring Voltage: AC 0-100V

HV side/LV side turns ratio: 250:1
