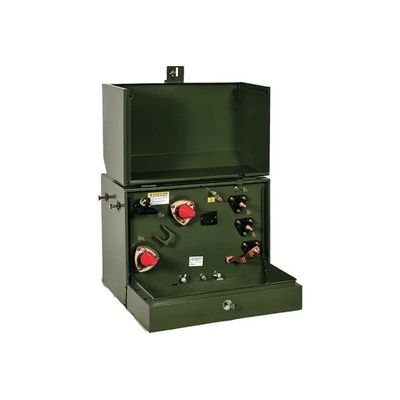

Meta Power Solutions -Â 100 kVA Single-Phase Pad Mounted Distribution Transformer
Meta-Power Solutions’ single-phase pad-mounted oil-immeresed distribution transformers are powerful, dependable, and designed with the environment in mind. With the ability to function indoors and outdoors, these transformers offer enhanced reliability and protection against critical equipment failure. The lower operating costs and heat emissions of these transformers make them an ideal choice for a wide range of applications.
Most popular related searches
single phase pad-mounted transformer
pad-mounted transformer
distribution transformer
industrial control transformer
oil distribution
transformer testing
power transformer
distributive power
distributed power
- Cooling Type: ONAN
- Primary Voltage: 2400-19,920 V
- Secondary Voltage:120-600 V
- Frequency: 60 Hz
- KVA Rating : 100 KVA
- No. of Phases : Single-Phase
- Tapping Range : ±2 x 2.5%
- Winding Material : Copper / Aluminum
- Impedance : 2.5 %
- Feed Type : Loop Feed
- Fluid Type : Non-PCB Mineral Oil
- Connection Type : Dead Front
- Mounting : Pad-Mounted
- No-Load Losses : 235 Watts
- Load-Losses : 571 Watts
- Sound Level : NEMA TR1 Standard
- IEEE Standards : IEEE C57.12.00
- Certification : UL Listed
- Efficiency : DOE 2016 Standard Compliant
- Temperature Rise : 65 oC
- Enclosure : NEMA Type 3R – Stainless Steel
- Primary Protection Devices
- Bay-O-Net Expulsion Fuse
- MOV Surge Arrestor (on demand)
- Tank Material : Coated Steel
- Mounting : Pad-Mount
- Quality Control :
- Transformer routine tests as per ANSI® and IEEE®
- Tank Coating System complies with IEEE Std C57.12.28 and C57.12.29
- Quality System is ISO 9001 certified
- Warranty : 12 months
