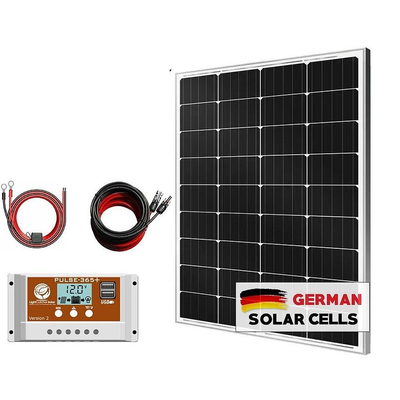

Light Catcher - 100 Watt Monocrystalline Solar Panel Kit (Panel+Controller+2" Wire)
LightCatcher Solar brings you the 100W Monocrystalline Starter Kit designed specifically for customers new to solar and need an easy system to install. The Starter Kit is great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins - providing many benefits, including, but not limited to, quiet power, mobile electricity, and grid independence. This solar kit comes with the tools necessary for a new system: a LCS-100M 100W 12V Monocrystalline solar panel, a 30A PWM charge controller, and 20 feet of wiring with connectors already installed. Start your solar adventure with a LightCatcher Solar Starter Kit. Negative grounding controller ensures the broader off grid applications and safety, especially to be used on a vehicle which has battery negative on the chassis. This kit is well known for its ease of use, simple to set up, high efficiency, and great production.
Most popular related searches
solar panel
monocrystalline solar panel
monocrystalline solar
solar panel kit
charge controller
load current
solar cable
mounting bracket
solar cell
electricity grid
- Grade A Solar Panel
- Germany Made Solar cells Produce 10% More than Similar Panels
- No Hot-Spot Heating Guaranteed, High Quality Diodes Installed
- 25 Year Value Added Warranty (Solr Panel)
- 30 Amps PWM Charge Controller, Pulse+ Model LCS-30PP
- Short Circuit/Revere Connection Safety Features
- Expandable up to 800 Watts
- 20' Solar Wire With MC4 Connector Already Installed
- Battery-Controller Wiring
- Mounting Brackets
SOLAR PANEL SPECS
- Model Number LCS-100M
- Maximum Power (PMAX): 100 Watts
- Open CIrcuit Voltage (VOC): 23.2 V
- Max power point voltage (VMPP): 18.54
- Short circuit current (ISC): 5.70 A
- Max power point current (IMPP): 5.40 A
- Warranty: 25 Year Power Output Warranty
- PERFORMANCE UNDER STANDARD TEST CONDITIONS (STC)
CONTROLLER SPECS
- Model Number LCS-30PP
- Maximum Input Power at 24V: 800 Watts
- Maximum Input Power at 12V: 400 Watts
- Rated Charge Current: 30 A
- Rated Load Current: 30 A
- Self-consumption: 5 mA
- Max. Solar Input Voltage: 42 V
- Overload Protection: Yes
WIRE SPECS
- Model Number LCS-12WIRE
- Size: 12 AWG
- Number of Strands: 7
- Voltage (UL): 600 V
- Insulation Thickness (Conductor): 0.060 inches
- Outside Diameter: 0.20 inches
