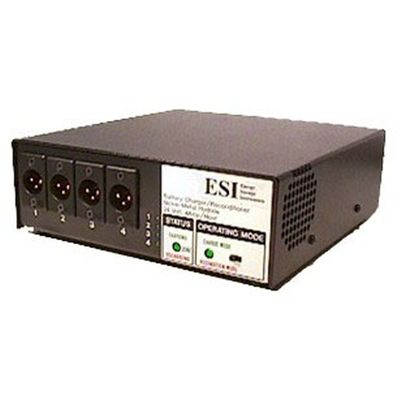

ESI - 100 Watt Sequential Charger / Reconditioner
The 100 Watt four channel battery charger utilizes a charge section with a multi-input connection system designed to sequentially charge up to four of the same type of battery. It also contains a high power discharge circuit and cooling fan for reconditioning nickel cadmium and nickel metal hydride batteries.
Most popular related searches
nickel metal hydride battery
battery charger
lithium battery
lithium ion battery
high voltage battery
voltage limiter
- This unit is available with software specifically for the professional video camera industry with battery voltages ranging from 12.0 to 14.4 Volts and up to 10 Amp hour in size.
- The recondition feature is very effective in the professional video and film industries due to the high battery cutoff voltages common to many professional video cameras. The recondition feature greatly improves the performance and lifetime of these batteries.
- Benchmark : 70 Minute Charge Time (12 Volt, 5 Amp Hour, NiCd Battery)
- Battery Types : Services NiCd, NiMH, Lithium-Ion and SLA type chemistries
- Output Current : 8 Amps Maximum
- Output Voltage : 10 – 50 VDC. Application Dependent
- Discharge Power : 100 Watts max
- Indicator – Status : Red-Discharging Green-Charging
- Indicator – Operating Mode : Red-Recondition Mode Green-Charger Mode
- Indicators – Station : On-Battery Present Flickering-Servicing Flashing-Done
- Indicators : Power/Off Charge/Discharge Pass/Fail Done/Working
- Switch : Mode Selector. Selects between Charge or Recondition Mode
- Charge Methods : For NiCd and NiMH batteries – Constant Current with multiple redundant full charge detection. For Lithium-Ion and SLA batteries – Constant Voltage with current limit
- Power Requirements : 90 – 135 or 180 – 260 VAC, 50 – 60 Hz. 2 Amps max
- Operating Temperature : Recommended 0 to 30 degrees Celsius. 50 degrees max.
- Size : 7.0 x 7.0 x 2.5 inches, L x W x H
- Weight : Approximately 4.0 lbs
- Case Material : Heavy Duty aluminum with black powder coat finish
- Connections : Detachable AC power cord and XLR output connector
