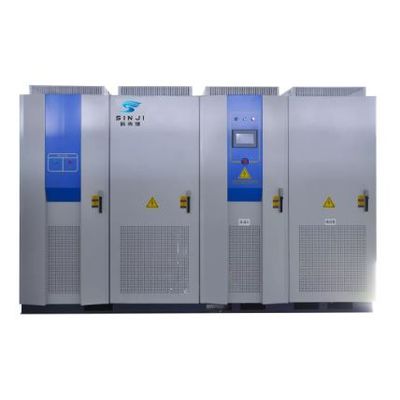

SINJI - Model BNSX-1000KS -1000kw Flow Battery Storage Converter

FromShanghai SINJI Electrical Technology Co., LTD.

Most of the inverters supporting vanadium power are customized boost products. The inverters we display are mostly inverter products supporting our company's vanadium power projects. The actual needs of customers need to be customized according to the actual situation of the project.

Most popular related searches

power monitoring system

inverter power

Equipment power : 1000kW
Power grid measurement indicators
Power supply system : Three-phase four-wire
Grid voltage range : AC 380V±15%
Grid frequency range : 50Hz±5%
Current distortion : THDi≤4%
DC side indicators
DC rated power : 1000KW
Battery discharge voltage range : DC 480-800V（可定制）
Battery charging voltage range : DC0-800V
Maximum current : 2083A
DC current ripple : ≤3%
System performance
Maximum conversion efficiency : 94%（Go throughDC/DC、DC/AC）
Protective function : Reverse polarity protection, short circuit, islanding effect, overheating, overload, etc.
Display and Communication
Display function : LCD touch screen
Communication function : RS 485 (standard configuration)/Ethernet port (standard configuration)
Usage environment
Working environment : The ambient temperature is -20℃-45℃, and the relative humidity is 0-95%. It can work 24 hours a day.
Protection level : IP20 (indoor)
Cooling method : Fan forced air cooling
Altitude : ≤5000m (over 2000m, derating is required)
Other performance indicators
Compressive strength : AC1500V/1min/no breakdown
Isolation method : Power frequency isolation
Insulation resistance : ≥20MΩ
Noise : ≤75dB(A)
Size（W*D*H） : 3100*900*2060mm
