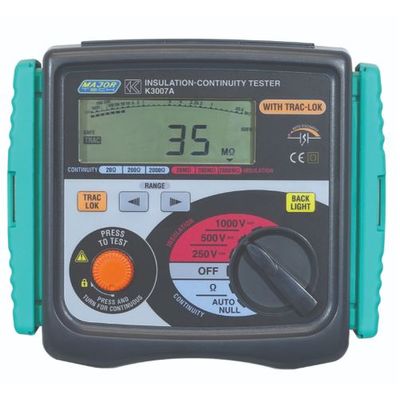

Major Tech - Model K3007 -1000V Digital Insulation Tester
The K3007 is equipped with Trac Lok Circuits that improve battery life considerably, thus saving the user money. The K3007 has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in this model is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. Another great feature is the EL Backlight on
the display which enables readings to be taken in dimly lit areas. This meter offers an intrisically safe model on request.
Most popular related searches
- Pouch for leads
- AA batteries
- Test leads
- Instruction Manual
- Strap
- COC
- Short circuit current : 1.5mA
- Overrange indication : Yes
- Digital Display : LCD Display
- Continuity : Yes
- Trac loc : Yes
- Auto discharge : Yes
- Bargraph : Yes
- Back Light : Yes
- Enclosure : Moulded case IP54
- Low battery indication : Yes
- Power source : 6 x R6
- Weight : 900g
- Dimensions : 185 x 167 x 89mm
- Safety Specs : IEC61010-1 CatIII 300V
- Three test ranges 250V-500V-1000V
- Auto null function
- Trac-Lok mode to extend battery life by up to 400%
- Automatic discharge after test
- Main bargraph indication of insulation resistance, sub bargraph indicates output voltage
- Displays the value of external AC voltage along with flashing symbol and buzzer
- Lock down Test Button for continuous use
- 1mA output current on insulation test
- 200mA short circuit on continuity range
- EL Backlight for dimly lit areas
