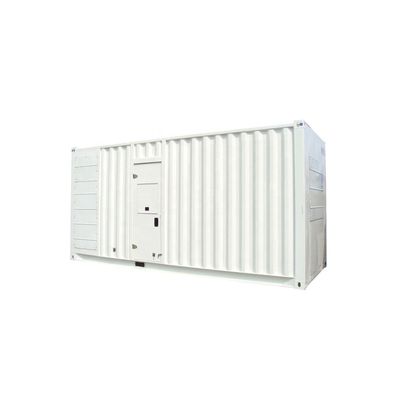

Coremax - 100kw 3ph PCS Containerized PV Battery Bank
Coremax offer 100kw Lithium battery storage system 768v DC for solar bank with customized solution for 100kwh 200kwh with 15+ years life design. This is a 100kW PCS and 200kWh batteries energy storage system. Working with our EMS(energy management system), batteries can be charged by surplus solar generation and discharge to local load when generation is insufficient to optimize self-consumption. Also battery system can be charged from grid at electricity cheap time and discharge at electricity expensive red zone. Moreover when grid fault happens, battery system keeps working as UPS. The maximum capability is 100kW and it can sustain full load more than 2 hours with a 200kWh battery system. The price listed is for reference only Detail price please confirm with our sales team.
The development of practical and effective energy storage systems is crucial in the utilization of renewable energy sources for daily use. One such example is the 100 kWh battery bank storage, an energy storage system designed to store excess energy from renewable energy sources for later use.
With a total capacity of 100 kWh, the 100 kWh battery bank storage is capable of storing large amounts of energy produced during peak production periods from sources such as solar power. This stored energy can then be used on-demand, during times when energy generation is low resulting in an uninterrupted power supply. This feature allows individuals and businesses alike to generate and store energy when it is plentiful, and use it when it is less abundant, reducing their reliance on traditional power grids.
- Maximum power density, maximum efficiency 97.5%
- Low power consumption with intelligent temperature control system
- Compatible with most kinds of batteries
- Wide battery voltage range
- Support on-grid charge/discharge and off-grid independently working
- Reactive power and active power can be adjusted
- Support black start, support multi-machine parallel function
- Flexible communication mode, receive BMS instructions in real time
- Small size, convenient for easy operation and maintenance.
- Using high performance DSP, the system is more stable and effective
- Patent software control and detection algorithm ensure that the equipment fault can be found in time, and the running status of the equipment is available via EMS
- AC/DC double power supply backup to ensure control system is always power on
- Intelligent constant temperature system
- Redundant power supply for control system
This 100kw PCS suitable for 200kwh Battery bank. The battery bank max power 100kw energy.
Coremax battery energy storage systems, incorporate a battery management system which is comprised of a 3-layer architecture composed of a BMU, CMU and GPC. The BMS has functions such as high-precision analog signal detection and reporting, fault alarm, uploading and storage, battery protection, parameter setting, Active balancing, battery SOC calibration, and information interaction with other devices.
- Comprehensive monitoring of battery operating status, including voltage, current and temperature, etc.
- High voltage detection accuracy on battery cell: ±5mV, ensuring system data analysis reliability
- Multi-point temperature monitoring to avoid battery thermal runaway and ensure system safety
- Active balancing to effectively extend battery life
- Complete and reliable battery system protection
- The BMS performs 24/7 in real-time, monitoring & protecting the lithium batteries in the energy storage system. The BMS provides data regarding cell voltage, cell temperature, connection cable terminal temperature and battery String voltage/current/SOC/SOH, etc.
- Weight: 1000 kg
- Dimensions: 160 × 80 × 80 cm
- Capacity: 100Ah, 150Ah, 200Ah, 300Ah, 50Ah
- Cell Brand: COREMAX, EVE CELL, Gotion
