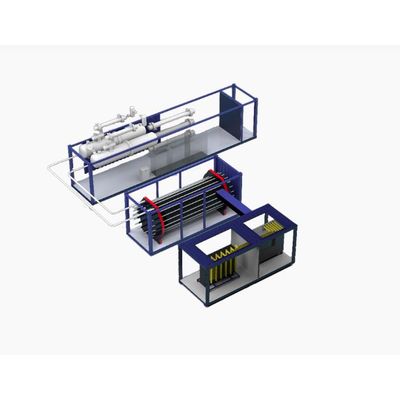

Verde - 100MW Hydrogen Containerized Electrolyzer
VERDE HYDROGEN patented alkaline type hydrogen production electrolyzers commission for the green hydrogen market. Large single-stack design (from 1kW, up to 5MW) can be standardized as more than 15 models from as small as 1Nm3/h to 4000Nm3/h or higher. Systems can be customized and capacity designed to the project requirements. Combined with containerized and compact design, that can be installed outdoors in any ambient temperature. VERDE HYDROGEN Electrolyzer Systems comply with international standards: ISO22734, ASME VIII Div I, NFPA 2, IEC and etc.
VERDE-SERIES: VERDE-100MW
H2 Production: 20000 Nm3/h, 42720 kg/day
O2 Production: 10000 Nm3/h
Purity: > 99.9995%
Dew Point: Up to -70C
Pressure: 1.6MPa, 230psi
Electricity: Medium Voltage, Low Voltage
DI Water Consumption: 20000 L/h
Footprint: 40` container ×50, 20` container ×10
