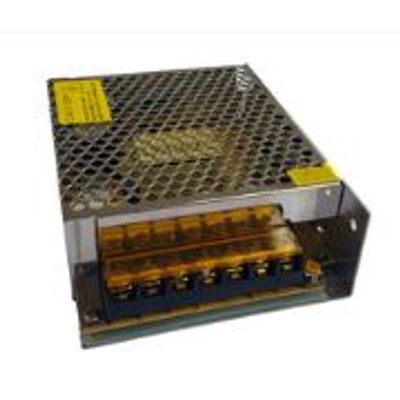

Fining - Model FAS - 100W Quad Output Switching Power Supply Adapter
The 100W dual output switching power supply feature the constant voltage mode . The products operates from 100~240VAC and offers models with 12V and 24V. Thanks to the high efï¬ciency up to 85%,with the fanless design, the entire series is able to operate for -40°C ~0°C.
Most popular related searches
Safety Approvals
CE, designed acording to UL/eTL/FCC standards
Mechanical Characteristics
Size: 129x97x40MM Weight: 0.36KG
- Input Condition: 100 to 240VAC 50/60Hz 1.4A Max
- Input Rated Voltage : 100 to 240VAC
- Input Voltage Range : 90 to 264VAC
- Input Rated Frequency : 50/60Hz
- Input Frequency Range : 47Hz to 63Hz
- Efficiency : 85% Min
- Rated Output Power: 100W
- Output Voltage & Current : 12VDC 8.3A
- Output Ripple And Noise : 1% Max
- Output Load Regulation: 5%
- Size: 129x97x40MM Weight: 0.36KG
- Protection : OCP OVP SCP OPP
- Operating Temperature and Humidity: 0 to 40℃
- Storage Temperature and Humidity: -10 to 85℃
- Relative Humidity: 20%-80%
- LED street lighting
- LED harbor lighting
- LED harbor lighting
- LED greenhouse lighting
- LED Strip Light
