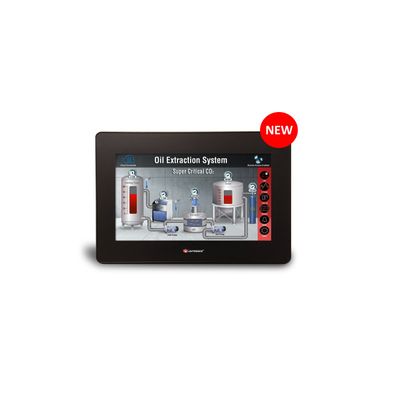

Unitronics UniStream - 10.1 Inch Built-in: PLC Controller + HMI + I/Os
Multi-function PLC with an integrated, high quality HMI touch screen, available in a range of built-in I/O configurations. The highly compact hardware profile, PLC+HMI+I/Os built into a one unit, offers powerful control capabilities in an incredible space-saving configuration. UniStream 10.1″ main features include Ethernet/IP, VNC, FTP, Web Server, Video + RTSP, SQL Client and more. It is backed by the most efficient programming software you have ever used. Available in UniStream 10.1″ Cloud series – a PLC with built-in, no-cost cloud services. You simply connect the PLC to ‘UniCloud’, Unitroncis cloud service, design a no-code dashboard, and go live in less than 30 minutes!
PLC
- Auto-tune PID, up to 64 independent loops
- Recipes & data logging via data tables & sampling
- MicroSD card – log, backup, clone & more
- Function Blocks & Structs
- Trends
HMI
- High quality touchscreen
- Multi-language display
- Built-in Alarm Screens
- Media support: Video*, Audio* and PDF viewer
- Multi-level password protection –easy and fast
Communication
- Ethernet TCP/IP
- USB host
- Mini USB for programming
- RS485
- RS232
- Add-on ports: CANbus, RS485, RS232
Protocols:
- MQTT Client
- EtherNet/IP
- MODBUS TCP
- CANopen, CANlayer2, UniCAN
- SNMP
- BACnet, KNX and M-Bus via gateway
- Message Composer for 3rd party protocols
General Features: SQL Client*, Web Server*, E-mail & SMS, Remote access via VNC, FTP server & client, 3G Modem support
I/O
- Expand up to 2048 I/Os
- I/O options include digital, analog, high-speed and temperature. See tables below:
- I/O Options
- Number of I/Os (Built-in, local and remote) : Up to 2,048 I/O points
- Built-in I/O or Uni-COM Modules : According to model and add-on model (see table below)
- Local Uni-I/O™ Modules : To add local I/Os, use UAG-CX I/O Expansion Adapters. These adapters provide the connection point for standard UniStream Uni-I/O™ modules
- Remote I/O Expansion : Use EX-RC1 adapters to further extend the number of I/Os 1
- Bit Operation : 0.13 µs
- Ladder Memory : 1 MB
- External Memory : microSD and USB Flash drive (up to 32GB)
- Data speed: up to 200mbs
- Video : Show MPEG-4 videos on the HMI screen3
- Audio : Stereo MP3 filesscreen3
- Power Supply : 24VCD (B1 support 12V/24VDC)
- Backup Battery : CR2032, Back-up RTC values, system data and retained tags
- Communication
- Ports : 1 Ethernet •1 USB host • 1 USB device for programming
- Protocols : MODBUS, EtherNet/ IPTM, CANopen, SNMP, FTP, BACnet2, RTSP, VNC, UniCAN, GSM (SMS, GPRS), KNX2, Message Composer for 3rd party protocols.
- SQL Client & Web Serverscreen3
- HMI Panel
- Type : TFT, LCD, Touch HMI Panel
- Size : 10.1” (16:9)
- Resolution : 1024 X 600 (WSVGA)
- Viewing Area
- Height x Width (mm) : Width x Height (mm) 222.72 x 125.28
- Colors : 65,536 (16bit)
- Display Backlight Illumination : White LED
- Environment
- Protection : Front face : IP65/66, NEMA 4X
- Rear side: IP20, NEMA1
- Operating Temperature : -20°C to 55°C (-4°F to 131°F)
