Cupaclad - 101 Logic System

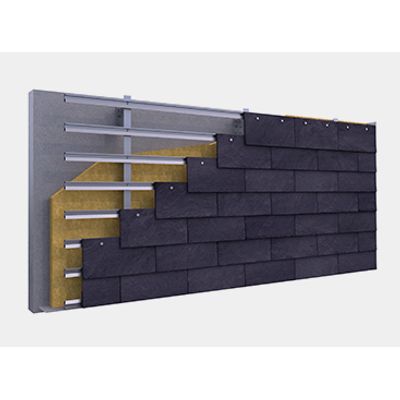

The CUPACLAD® 101 LOGIC system is part of the CUPACLAD® 101 series, made up of systems with invisible fixings that make our natural slate the main attraction of a facade. The CUPACLAD® 101 LOGIC rainscreen cladding system gives any facade balance, combines ideally with other materials and flaunts natural slate’s texture and sheen.
The CUPACLAD® 101 series systems share a single fixing system with self-drilling screws specially designed by our engineers to ensure optimum slate rainscreen cladding installation, but remaining totally invisible to avoid impacting the design.
The screws are made from stainless steel and feature a large diameter flat head to ensure and facilitate proper fixing of the slate.
Slates/m2
16,7
Weight/m2 (slate)
≤30 kg/m2
Measurements
Slate size: 40x20cm
Nominal Thickness: 7,65mm
Fixings
Invisible
Exclusive Screw
