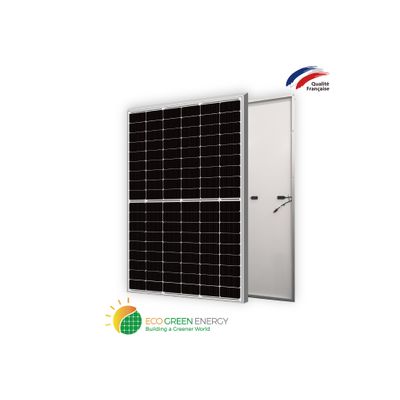

ATLAS TOPCon - Model 10BB -108 cells 430W Module
Founded in 2008, Eco Green Energy is a French brand solar PV manufacturer distributing now its PV module in more than 60 countries over the world. Atlas series solar modules are made only with grade A cells for the highest power generation, and lowest LCOE, and ensured more than 25 years of lifespan. Our modules are produced in our 4.o 1GW factory, with the best machinery in the market, following the highest standards of production and quality control. We launched the ATLAS TOPCON series, our all-new line of PV modules, including 108 cells module 430W.
Our PV modules are produced in our factory which is certified by ISO 9001 and complies with good Quality Management Systems, as well as the highest performance, safety, and security certification standards of the industry.
This module is most suited for residential, commercial, and industrial installations, on rooftops or mounted-ground applications.
ATLAS TOPCOM 10BB Monocrystalline Module 108 cells, EGE-430W-108M(M10)-T
- 10BB Monocrystalline Module
- Up to 22.02% efficiency
- Lower LCOE and BOS
- Anti PID/ Low LID protection
- Less Hot Spot Shading effects
- Lower temperature coefficient
- More power output in weak light conditions, such as haze, cloudy, and morning.
- Comprehensive certificates
TOPCon technology belongs to the N-type cells. To manufacture TOPCon cells, tunnel oxide, and polysilicon layers are added to the rear side of the cell. It helps the cell handle higher voltages, which increases power production.
- Increased efficiency and power generation
- Lower degradation
- Lower LCOE and BOS
- Less Hot Spot Shading effects
- Anti PID/ Low LID protection
- Better resistance to high temperatures (lower temperature coefficient)
- Higher efficiency in low-light conditions
Power output (Pmax): 430 W
Module efficiency: 22.02 %
Maximum power voltage (Vmp): 32.33 V
Maximum power current (Imp): 13.3 A
Open circuit voltage (Voc): 39.04 V
Short circuit current (Isc): 14.1 A
Cell type: Monocrystalline (182x91 mm)
Number of cells: 108
Dimensions: 1,724x1,134x35mm
Weight: 22 kg
Frame: Anodized aluminium alloy
