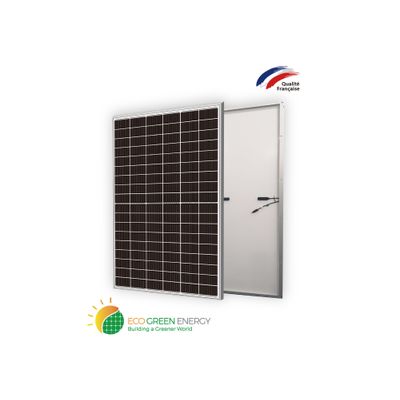

ATLAS PRO - Model 12BB -108 Cells 540W Mono Module
Founded in 2008, Eco Green Energy is a French brand solar PV manufacturer and distributing now its PV module in more than 60 countries over the world. Atlas Pro series solar mono module is made only with grade A cells for the highest power generation, lowest LCOE, and ensures more than 25 years of lifespan. ATLAS 12BB Monocrystalline Module 108 cells, EGE-520-540W-108M (M12). Eco Green Energy’s PV modules are only using grade A solar cells with very high efficiency.
- Gallium-doped Technology
- 12BB Monocrystalline Module
- Lower LCOE and BOS
- Anti PID/ Low LID protection
- Less Hot Spot Shading effects
- Lower temperature coefficient
- More power output in weak light conditions, such as haze, cloudy, and morning.
Our PV module Atlas PRO mono module is suitable for utility-scale and solar farm project and have the following certification:
TUV SUD (IEC 61730/ IEC 61215), Salt Mist (IEC 61701), Ammonia Corrosion (IEC 62716), Anti-PID, Sand and DUST (IEC 60068-2-68).
Our PV modules are produced in our factory which is certified by ISO 9001 and comply with good Quality Management Systems.
You want to know more about the 210mm PV module, read our article.
Cell type: Monocrystalline (210x105 mm)
Number of cells: 108
Dimensions: 1960x1303x35mm (1.5mm Cell Gap)
Weight: 28 kg
Glass: 3.2 mm tempered glass, High transmission (>94%), Anti-Reflective Coating
Frame: Anodized aluminium alloy
Junction box: IP68 rated (3 by pass diodes)
Cable: 4.0mm ; 300mm(+) / 400mm(-) ; Length can be customized
Connector: MC4 or MC4 compatible
