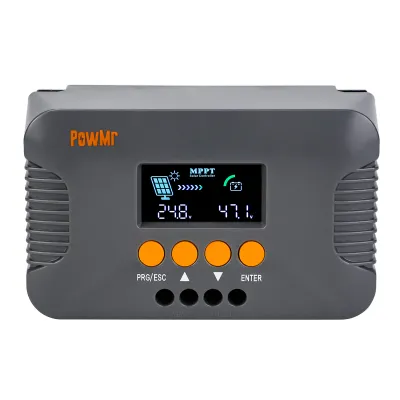

PowMr - Model POW-Boost 10A - 10A MPPT Solar Charge Controller for Multiple Voltage Systems

FromPowMr
SHARE
The 10A MPPT Solar Charge Controller by PowMr is engineered for scenarios where the photovoltaic input voltage is lower than the battery voltage. It effectively boosts the input voltage to meet the battery charging requirements, overcoming the limitations of insufficient voltage from a single photovoltaic panel. The controller boasts up to 99% tracking efficiency and 98% peak conversion efficiency, enabling optimal battery charging from solar panels. It utilizes a multi-stage charge algorithm, including bulk charge, boost charge, and float charge phases, with customizable charging voltages via an LCD screen. Suitable for various battery types, such as LiFePO4, Gel, and flooded lead-acid, it supports multiple system voltages (24V/36V/48V/60V/72V). The adaptive boost charge feature intelligently assesses the battery’s response during initial charging and adjusts the boost charge duration to ensure full recharging without accelerating battery aging.
Most popular related searches
MPPT solar charge controller
solar charge control
solar charge controller
charge controller
MPPT charge controller
solar charge
solar controller
photovoltaic panel
integrated charging
voltage control

PV Input:
PV Input Voltage: 15~25V : 25~48V : 48~60V
PV Input Power: ≤150W : ≤250W : ≤400W
System Voltage: 24/36/48/60/72V : 48/60/72V : 60/72V

Charging Mode:
Charging technology: MPPT
Charge Algorithm: 3-Stage
Self-consumption: <2W
Nominal System Voltage: 24V/36V/48V/60V/72V
Battery Voltage Range: 20~88V

Environment:
Operating Temperature
-35℃~+65℃
Humidity Range: ≤95%

General Specification:
Protection Class: IP32
Dimension: 140*85*50mm
Net weight: 305g

01 Boost Voltage Charging Controller

Designed for scenarios where the photovoltaic input voltage is lower than the battery voltage, this controller effectively boosts the voltage to match the battery's charging requirements. It overcomes limitations caused by insufficient voltage from a single photovoltaic panel, ensuring reliable battery charging. This 10Amp MPPT solar charge controller has up to 99% tracking efficiency and peak conversion efficiency of 98% to allow you to charge the battery from solar panes at the maximumpower point!

02 Multi-stage Charge Algorithm

Optimize your battery charging with three-stage MPPT charging capability. From bulk charge to boost charge, Float Charge, it ensures comprehensive and efficient charging. Customize your charging voltages effortlessly via the LCD screen, tailoring the charging process to your specific requirements.

03 Flexible Application

Integrated charge presets combined with adaptive charge logic are well suited for most common battery types, such as LiFePO4, Gel and flooded lead-acid. Compatible with 24V/36V/48V/60V/72V system voltage.

04 Durable & Safe

Adaptive boost charge monitors the battery’s response during initial charging and intelligently determines the appropriate boost charge duration for each individual charge cycle. This ensures that the battery is fully recharged regardless of the discharge level or capacity and avoids excessive time at the elevated boost charging voltage (that can accelerate battery aging).
