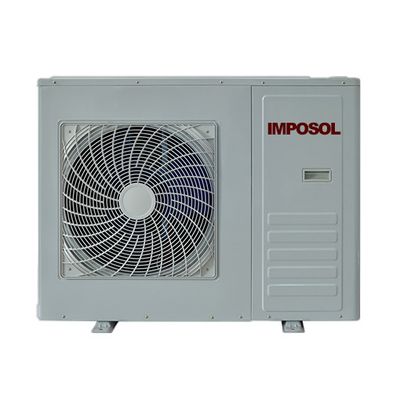

Imposol - Model WHP-030HC - 10KW Inverter& EVI Air Source ( Ultra-Low Ambient Temp.) Heat Pump
Performance Condition - A : Ambient temp. (DB/WB): 7°C/6°C, Water temp. (In/Out): 40°C/ 45°C; Performance Condition - B : Ambient temp. (DB/WB): -12°C/-14°C, Water temp. (Out): 41°C; Performance Condition - C: Ambient temp. (DB/WB): 35°C/24°C, Water temp. (In/Out): 12°C/7°C.
Model: WHP-030HC - 10KW
Power Supply - Refrigerant: 220-240V/1PH/ 50Hz -R410A
Heating Capacity ( KW ) - A: 10
Rated Input Power ( KW ) - A: 2.6
COP ( W/W ) - A: 3.85
Heating Capacity ( KW ) - B: 7.4
Rated Input Power ( KW ) - B: 2.76
COP ( W/W ) - B: 2.68
Cooling Capacity ( KW ) - C: 8.3
Rated Input Power ( KW ) - C: 2.76
EER ( W/W ) - C: 3.01
Max. Input Power ( KW ): 3.4
Max. Input Current ( A ): 16
Compressor : Highly or Mitsubishi EVI Technology Twin Rotary
Fan: DC inverter brushless fans
Fan Quantity: 1
Fan Airflow ( m3/h ): 3000
Fan Rated Power ( W ): 100
Heat exchanger: High efficiency plate type heat exchanger
WaterSide Pressure Drop ( Kpa ): 22
Inlet/Outlet Pipe Size ( mm ): DN25
Min. Water Flow ( m3/H ): >1.6
Noise ( dB(A) ): ≤56
Heating Water Temp. ?: 20 ~ 60?
Cooling Water Temp. ?: 5 ~ 20 ?
Operating Ambient Temp. ?: -35°C~45?
Unit Dimension ( mm ): 1100*400*850
Weight ( KG ): 72/80
