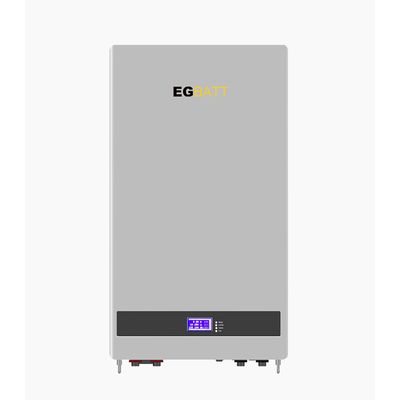

Egbatt - Model LiFePo4 - LFP 10kWh -10kwh 51.2v 200Ah Lithium Powerwall Battery Pack
The 10kWh 51.2V 200Ah LiFePO4 Lithium Powerwall Battery Pack is a high-capacity energy storage solution that is designed to provide reliable, long-lasting power for a variety of applications. This battery pack is constructed using high-quality lithium iron phosphate (LiFePO4) cells, which are known for their excellent cycle life, safety, and stability. With a capacity of 10kWh, this battery pack is capable of storing a significant amount of energy, making it ideal for use in residential and commercial settings. Whether you are looking to power your home during a power outage or supplement your renewable energy system, this battery pack is up to the task.
The 51.2V voltage rating of this battery pack makes it compatible with a wide range of devices and systems, while the 200Ah capacity ensures that it can provide power for an extended period of time. Whether you are using this battery pack to power a small appliance or a large industrial machine, you can be confident that it will deliver reliable, consistent performance.
In addition to its impressive performance, this battery pack is also designed with safety in mind. The LiFePO4 cells used in its construction are known for their excellent stability and resistance to thermal runaway, which minimizes the risk of fire or explosion. Additionally, the battery pack is equipped with multiple layers of protection to ensure that it remains safe and reliable throughout its lifetime.
Overall, the 10kWh 51.2V 200Ah LiFePO4 Lithium Powerwall Battery Pack is an excellent choice for anyone looking for a high-capacity energy storage solution. With its impressive performance, long cycle life, and excellent safety features, this battery pack is sure to provide reliable power for years to come.
The EGbatt low-voltage battery systems 10 kWh Powerwall boast a modular design, making it easy for capacity expansion. These systems have user-friendly design and are equipped with LiFePO4 battery cells, which are well-known for their high safety and reliability. They offer strong power for household appliances with their high efficiency and excellent performance. In addition, these systems come with intelligent remote O&M, providing a convenient energy storage solution for homeowners.
- Model: LFP 10kWh
- Total Energy: 10kWh
- Usable Energy(d.c): 9.2kWh
- Nominal Charge/Discharage Power: 4.6kW
- Peak Power(Only discharge): 10kW for 3 seconds
- Constant Current(Only discharge): 100A
- Voltage: 48-56Vd.c
- Norminal Voltage: 51.2Vd.c
- Norminal Current: 100A
- Max.Charge Voltage: 59.2V±0.5V d.c
- Recommended DOD(Cycle Life): 90%(>6000)
- Operating Condition: Indoor / Outdoor
- Operating temperature (charge): From 0~45?
- Operating temperature (Discharge): From -10~55?
- Dimension(mm): 585(645)*940(995)*205(225)
- Weight: 125kg
- Humidity: 4~100%(No condensed water)
- Over Voltage Category: ?
- Cooling Type: Natural Cooling
- Case Material: Metal
- Installation: Wall mounting
- IP rating: IP65
- Protective Class: ?
- Max.Number of Parallel or Series: 16
- Warranty: 10 years
- Communication : CAN RS485
- Protection Mode: Triple hardware protection
- Battery Protection: Over-current/Over-voltage/Short circut/Under-voltage/Over temperature
- Weight: 100 kg
- Dimensions: 900 × 500 × 150 cm
- Brand: CATL, Lishen cell
- Voltage 48 volt
- Weight 100 kg
- Battery Type Lithium iron Phosphate (LiFePo4). LFP cells inside
