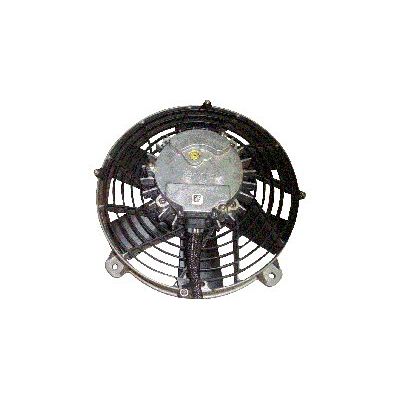

EMP - Model FIL-11 -11" Brushless Electric Fan
The FiL-11 is a high performance, long life, severe duty 11 inch fan used in cooling systems in extreme environments. It is used in the transit bus market, off road applications, power grid battery cooling, stationary power generation and roof mounted cooling systems.
Most popular related searches
permanent magnet motor
stationary power generator
battery protection
grid battery
power grid
power generation
stationary generator
off-grid power
- 12 or 24 VDC Brushless Motor
- Rugged Design
- SAE J1308 Compliant Finger Guards
- Lab Tested Under Severe Conditions
- Field Proven Long Life
- Reversible
- Variable Speed
- Service Tool Available
- Sealed and Fully Submersible
- CSA and UL Options Available
12 or 24 VDC Brushless Motor
Brushless, permanent magnet motors are combined with EMP designed motor control electronics to provide a high efficiency, long life fan. Brushless motors have no contacting parts to wear and reduce life. Features include locked rotor protection, over temperature protection, over current protection, over voltage protection and reverse battery protection.
- Airflow : 1,000 CFM @ 1.0 Inch H20 (12V), 1,000 CFM @ 1.5 Inch H20 (24V)
- Overall Package Weight (Without Fluid) : 8.5 lbs.
- Max Continuous Operating Temp : 203° F
- Min Continuous Operating Temp : -40° F
- Max Storage Temp : 257° F
- Min Storage Temp : -58° F
- Sealing Rating : IP6K9K
- Fan Configuration : Push or Pull
- Voltage : 9-18 VDC (12V) 18-32 VDC (24V)
- Max Current : 25 Amps (12V) 20 Amps (24V)
- Max Fan Speed : 4000 RPM (12V) 4600 RPM (24V)
- Minimum Fan Speed : 750 RPM
- Finger Guard Protection : SAE J1308
- Reversal Options : PWM, Enable or Timed Interval
- Control Inputs : On/Off, PWM or EMP E-Link
