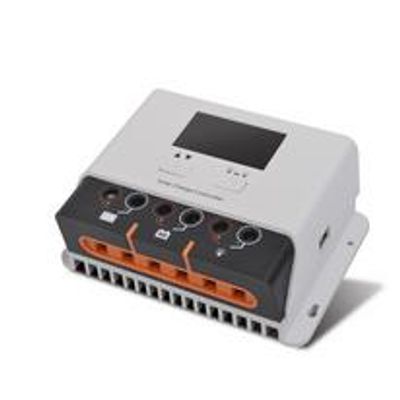

Beeland - Model BL-SHP2440N/30N 12/24V, 40A/30A - 12/24V 40A/30A PWM Smart Solar Charge Controller

SHARE

Automatic system voltage identification.  Charging program options for sealed, GEL and flooded lead-acid batteries and lithium batteries areavailable.

Most popular related searches
solar charge control
solar charge controller
solar charge
charge controller
lithium battery
lead-acid battery
PWM solar charge controller
solar controller
street light
sealed lead acid battery
  1. An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charge to the battery periodically or when over discharged can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery`s service life (with the exception of GEL and lithium batteries).
  2. With temperature compensation employed, charging parameters can be automatically adjusted (with the exception of lithium batteries).
  3. A wide range of load working modes facilitate the product`s application to different types of street lights and monitoring devices.
  4. The product provides overcharge, over-discharge, overload protection, as well as short-circuit and reverseconnection protection.
  5. By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.
  6. A range of parameter settings and power-down saving functions are available, thus requiring no repeated
