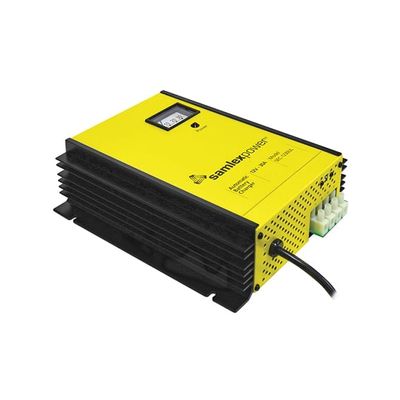

Samlex America - Model SEC-1230UL -12 Volt, 30 Amp Safety Listed Battery Charger
This advanced fully automatic three-stage 30 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 VAC, 50/60 Hz (default) or 230 VAC, 50/60 Hz (internal jumper setting) AC source. User selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries. The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up to 3 separate battery banks. 2 Year Limited Warranty.
Most popular related searches
lead-acid battery
battery charger
DC power supply
battery bank
UPS system
battery separator
battery system
absorbent glass mat battery
battery safety
- High efficiency & lightweight
- Commercial Grade
- Quiet operation
- Industry-proven design trusted by professionals for over 30 years
- Automatic operation for ALL Lead Acid Batteries: Flooded, AGM or Gel Cell
- User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries
- 120 VAC, 50/60 Hz (default) or 230 VAC, 50/60 Hz (internal jumper setting)
- Voltage meter display – Ammeter and LED power status
- For all types of Lead Acid batteries
- Charge with a battery load or stand alone
- Use as a power supply or DC UPS
- UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity
- Charge 3 banks of batteries at once – no isolator necessary
- Input: 120 VAC, 50/60 Hz (default) or 230 VAC 50/60 Hz (internal jumper setting)
- Output: 12 VDC
- Amps: 30 Amps
- Weight: 6.4 (lbs)
- Weight: 2.9 (kg)
- Dimensions: 11.0 x 8.4 x 3.3 (in)
- Dimensions: 28.0 x 21.4 x 8.3 (cm)
- Safety: Intertek-ETL listed: Conforms to ANSI/UL Standard 1564 ; Certified to CAN/CSA STD. C22.2 No. 107.2
- Automotive
- Recreational vehicles
- Marine
- Communications sites
- Battery back-up systems
