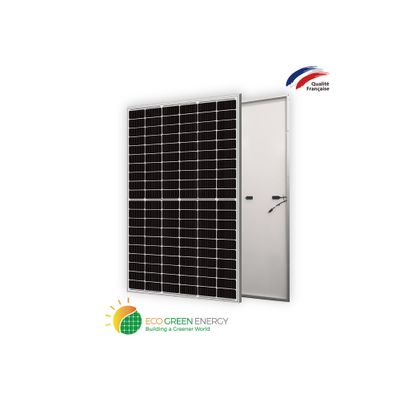

ATLAS PRO - Model 12BB -120 Cells 605 W Mono Module
Founded in 2008, Eco Green Energy is a French brand solar PV manufacturer and distributing now its PV module in more than 60 countries over the world. Atlas Pro series solar modules are made only with grade A cells for highest power generation, lowest LCOE, and ensured more than 25 years of lifespan. ATLAS PRO 120 Cells Mono Module 12BB, EGE-570-600W-120M (M12). Eco Green Energy’s modules are only using grade A solar cells with very high efficiency.
- Gallium-doped Technology
- 12BB Monocrystalline Module
- Lower LCOE and BOS
- Anti PID/ Low LID protection
- Less Hot Spot Shading effects
- Lower temperature coefficient
- More power output in weak light conditions, such as haze, cloudy, and morning.
Our PV module Atlas PRO is suitable for utility-scale and solar farm project and have the following certification:
TUV SUD (IEC 61730/ IEC 61215), Salt Mist (IEC 61701), Ammonia Corrosion (IEC 62716), Anti-PID, Sand and DUST (IEC 60068-2-68).
Our PV modules are produced in our factory which is certified by ISO 9001 and comply with good Quality Management Systems.
You want to know more about the 210mm PV module, read our article.
Cell type: Monocrystalline (210x105 mm)
Number of cells: 120
Dimensions: 2172x1303x35mm (1.5mm Cell Gap)
Weight: 31.2 kg
Glass: 3.2 mm tempered glass, High transmission (>94%), Anti-Reflective Coating
Frame: Anodized aluminium alloy
Junction box: IP68 rated (3 by pass diodes)
Cable: 4.0mm ; 300mm(+) / 400mm(-) ; Length can be customized
Connector: MC4 or MC4 compatible
