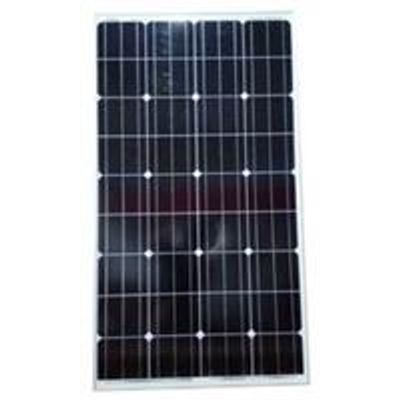

Beeland - Model BL-SP120M -120W 18V Monocrystalline Solar Panel

• AI frame: Without screw, corner connection. 6 holes on the frame can be installed easily.
• Junction box: Multi function junction box with water proof and bypass diode, which protects the module from burning caused by hot-spot effect because of shading
• High reliability with guaranteed ±3% power output tolerance,ensuring return on investment
• Withstands high wind-pressure and snow load (passed IEC 5400Pa mechanical loading test), and extreme temperature variations. Resisting moisture and etching effectively, not effect by geology.
• Rigorous quality control meeting the highest international standards ISO 9001:2000 (Quality Management System) and ISO 14001:2004 (Environmental Management System) certied factories manufacturing world class products.
• 5-year product quality guarantee and 25-year power output transferable guarantee. Long lifetime: ≥25 years; Less power decrease.

ELECTRICAL PARAMETERS

• Model No. BL-SP120M
• Maximum Power at STC (Pmax) 120 Wp
• Open Circuit Voltage (Voc) 22.20 V
• Short Circuit Current (Isc) 7.06 A
• Optimum Operating Voltage (Vmp) 18.20 V
• Optimum Operating Current (Imp) 6.59 A
• Module Ef
  ciency 14.81 %
• Power Tolerance 0~+3 %
• Operating Temperature -40°C to +85°C
• Maximum System Voltage 1000V DC
• MECHANICAL PARAMETERS
• Cell Type Mono-crystalline silicon
• 156x104mm
• No. of Cells and Connection 36 (4x9)
• Dimensions of Module 1210x670x30mm
• Weight 9.5 kg
• Area 0.81 m2
• Cable & Connector Type 4mm2x900mm with MC4
• Junction Box Type IP 68 Pass TUV
• Front Class 3.2mm tempered glass
• Frame Anodized Aluminium Alloy
• Max.Series Fuse Rating 15A
• Surface Max. Load Capacity 2400-5400 Pa
• Max. Hail Load 23m/s, 7.53g
• Standard Test Condition AM1.5 1000W/㎡ 25 ±2°C
