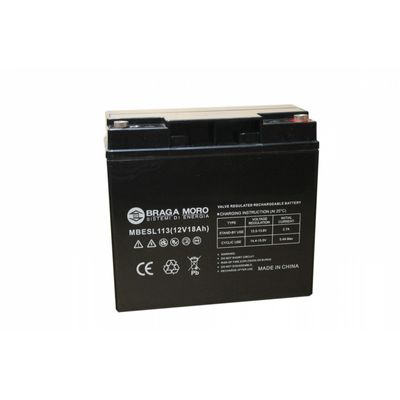

Braga Moro - Model MBESL113 -12V 18Ah AGM Battery
FromBraga Moro
The battery is constructed by plates, separators, safety valves and container. Since the electrolyte is held by a glass mat separator and plates, the battery can use in any direction and position without leakage.
Most popular related searches
- Nominal Voltage12V
- Number of cell : 6
- Life( : 5 years
- Nominal Capacity77°F (25 C)
- 20-hour rate( 0. 9A,10.5V) 18Ah
- 10-hour rate ( 1.67A , 10.5V ): 16.7Ah
- 5-hour rate (3.06 A,10.5V) 15.3Ah
- 1-hour rate(11.6A,9.6V) : 11.6Ah
- Internal Resistance
- Fully Charged battery77°F (25 C) : 15 mΩ
- SelfDischarge
- 3% of capacity declined per month at 20C(average)
- Operation Temperature Range
- Discharge : 20~60 C
- Charge : 10~60 C
- Storage : 20~60 C
- Max.Discharge Current 77°F (25 C) : 270 A(5s)
- Short Circuit Current : 1080 A
- Length (mm / inch) : 181 / 7.73
- Width (mm / inch) : 76 / 2.99
- Height (mm / inch) : 166 / 6.54
- Total Height (mm / inch) : 166 / 6.5 4
- Approx. Weight(Kg / lbs) : 5.0 / 11.00
